2823403 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,PL HDR,SRRT,2.8,SN,TB

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Number of Positions	Fastening Type	Contact Type	Contact Material	Mounting Type	Connector Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions Loaded	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]

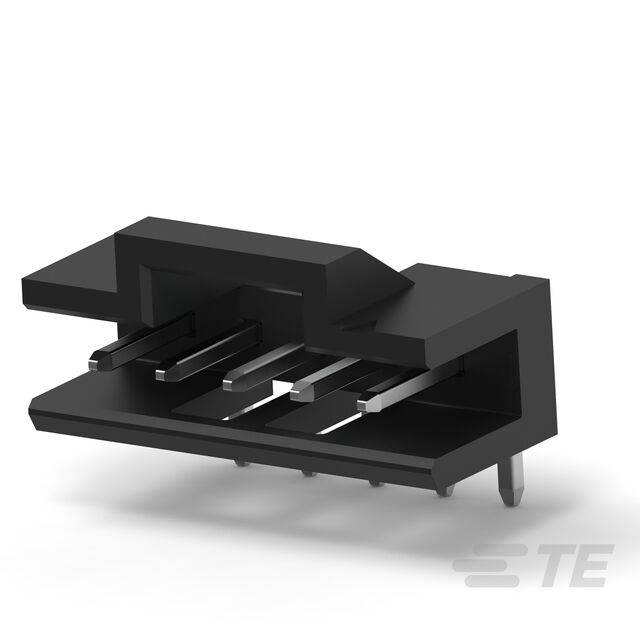

TE Connectivity Raychem Cable Protection 2823403-6	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black	6	Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm

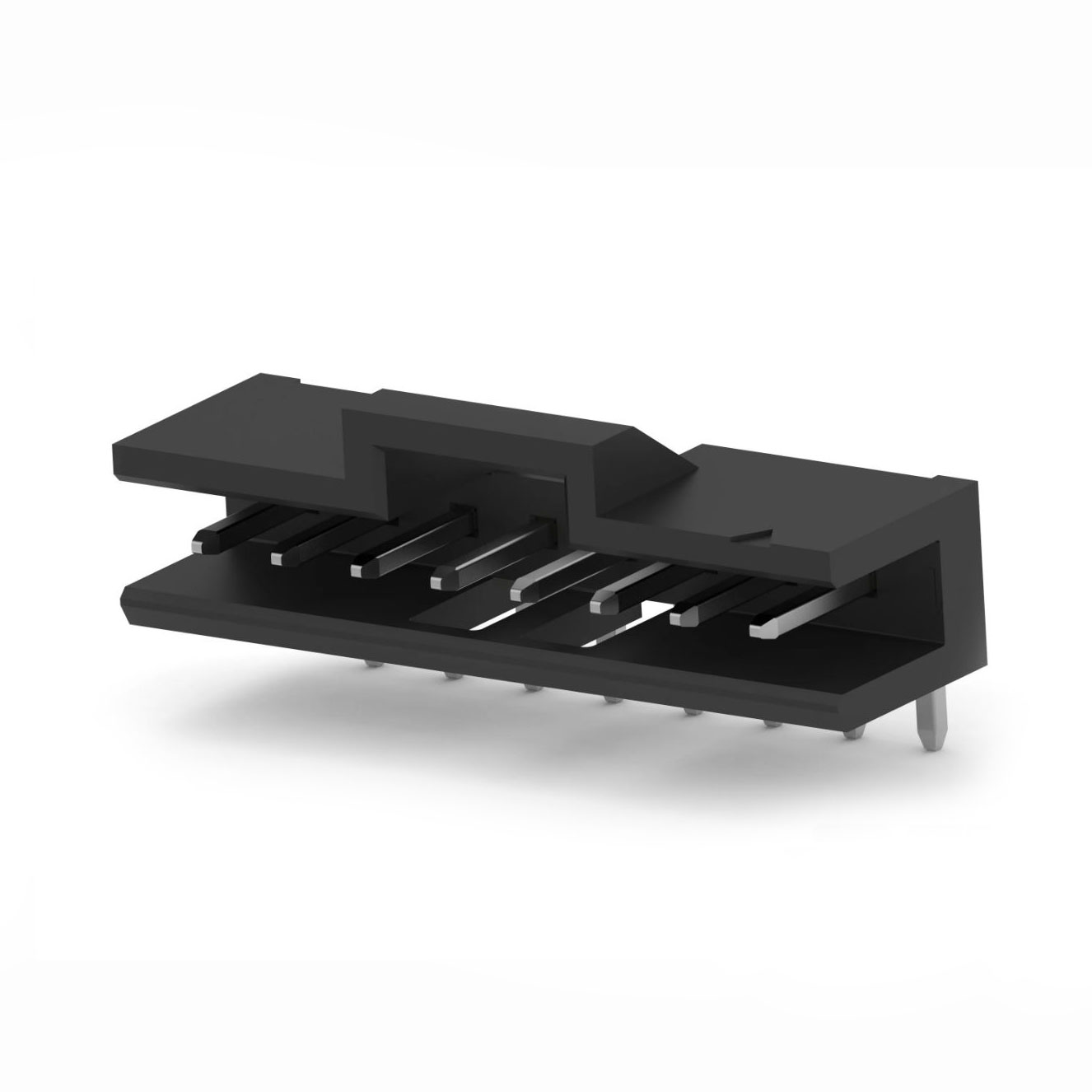

TE Connectivity Raychem Cable Protection 1-2823403-2	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black	12	Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm

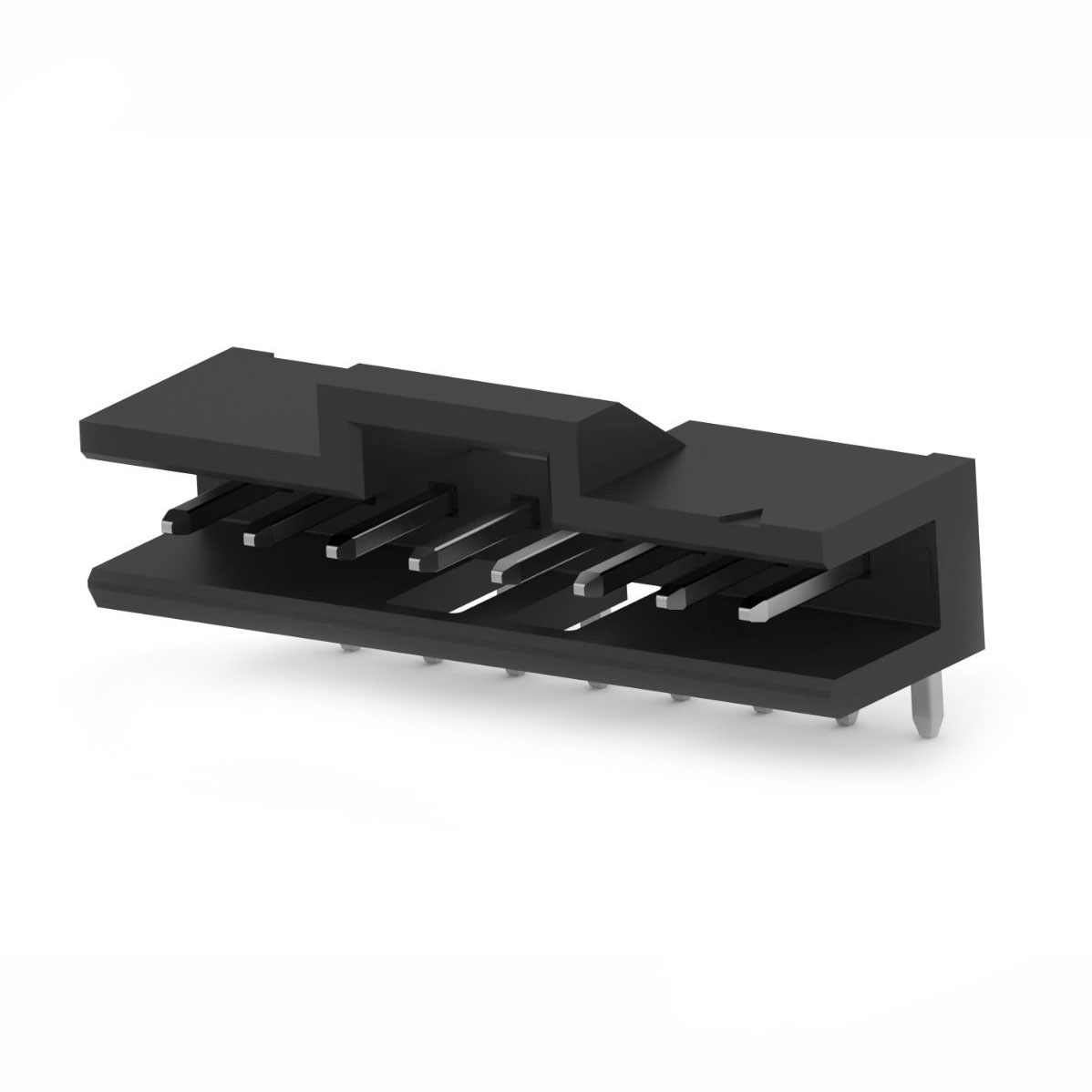

TE Connectivity Raychem Cable Protection 1-2823403-0	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black	10	Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm
TE Connectivity Raychem Cable Protection 2823403-4	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black	4	Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm
TE Connectivity Raychem Cable Protection 2823403-8	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black	8	Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm

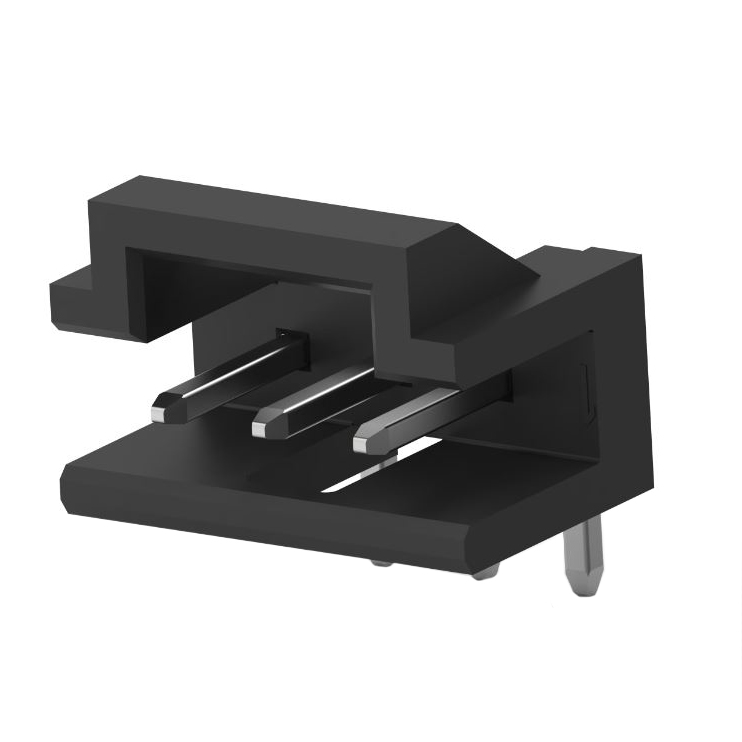

TE Connectivity Raychem Cable Protection 2823403-3	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black		Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm
TE Connectivity Raychem Cable Protection 2823403-5	1	-40 °C	105 ░C	Solder	Board to Board Cable	0.3 µm	12 µin	Thermoplastic	125 VAC	0.079 in	2 mm	Black		Latch Holder	Male Pin	Phosphor Bronze	Through Hole Right Angle	Header	2 A	UL94 V-0	118.1 µin	3 µm	Tin	0.303 in	7.7 mm	4 mm	0.157 in	Shrouded - 2 Wall	All	Square	0.11 in	2.8 mm
