32K189 Series
Manufacturer: Rosenberger
Beta
⌘K

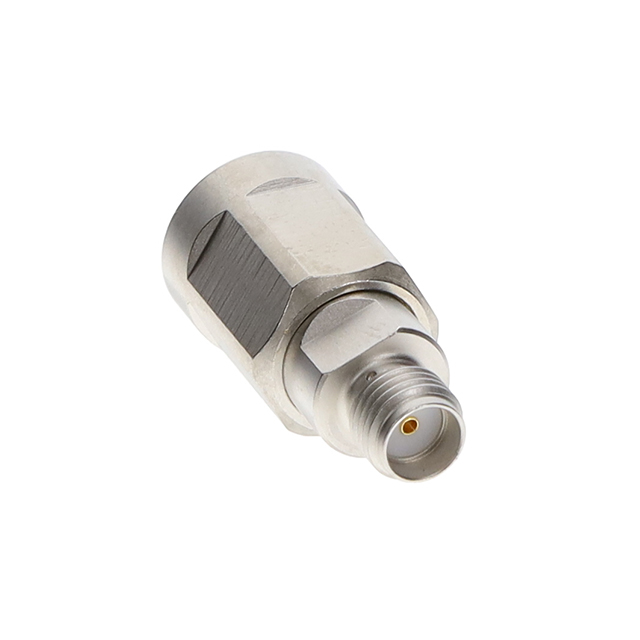

SMA ADAPTER
| Part | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Center Contact Material | Impedance | Style | Fastening Type | Convert To (Adapter End) | Mounting Type | Center Contact Plating | Adapter Series | Convert From (Adapter End) | Conversion Type | Adapter Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | 0.17 dB | Beryllium Copper | 50 Ohms | Straight | Snap-On Threaded | SMA Jack Female Socket | Free Hanging (In-Line) | Gold | NEX10 to SMA | NEX10 Plug Male Pin | Between Series | Plug to Jack | 12 GHz |
