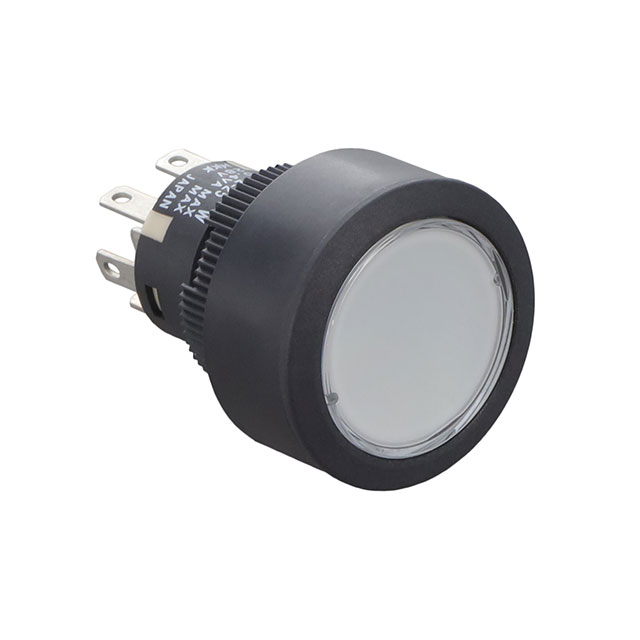

YB225C Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [diameter] | Color - Actuator/Cap | Current Rating (Amps) | Switch Function | Mounting Type | Features | Actuator Marking | Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Type | Ingress Protection | Voltage Rating - DC | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Clear | 0.4 VA | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 28 V | 28 V | ||||

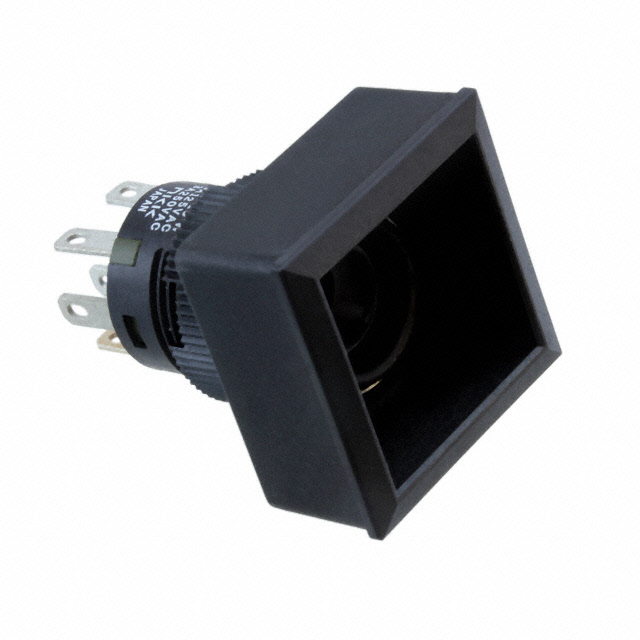

 NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Plunger for Cap | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 21 mm | 21 mm | ||||
 NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Green | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Illuminated Standard | DPDT | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 24 V | Green LED | ||
NKK Switches | 1000000 Cycles | 100000 Cycles | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Plunger for Cap | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 21 mm | 21 mm | ||||

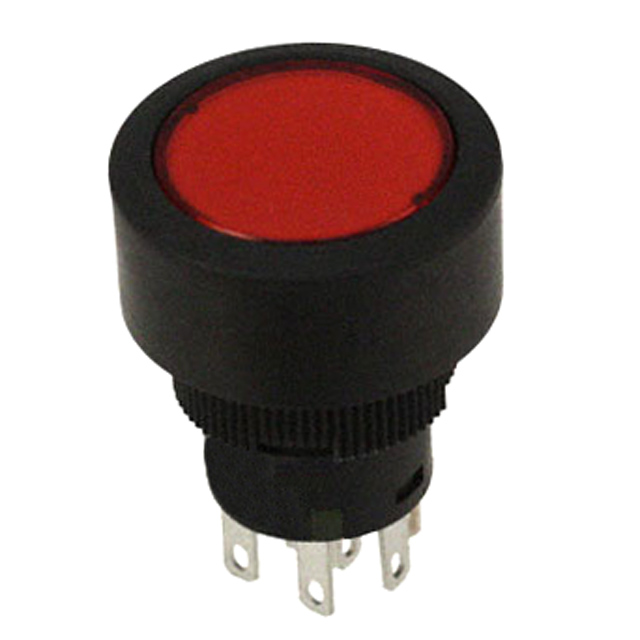

 NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Red | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | ||||

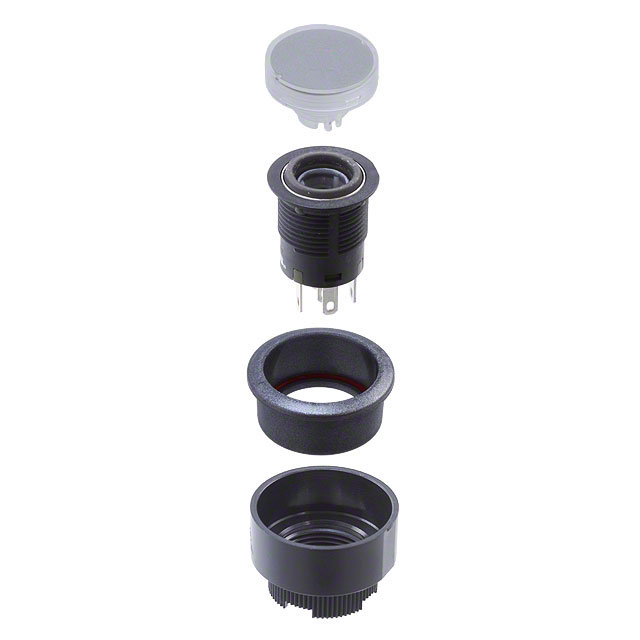

 NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Silver | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Illuminated Standard | DPDT | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 1.9 VDC | LED Red | ||
 NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Red | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Illuminated Standard | DPDT | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 1.9 VDC | LED Red | ||

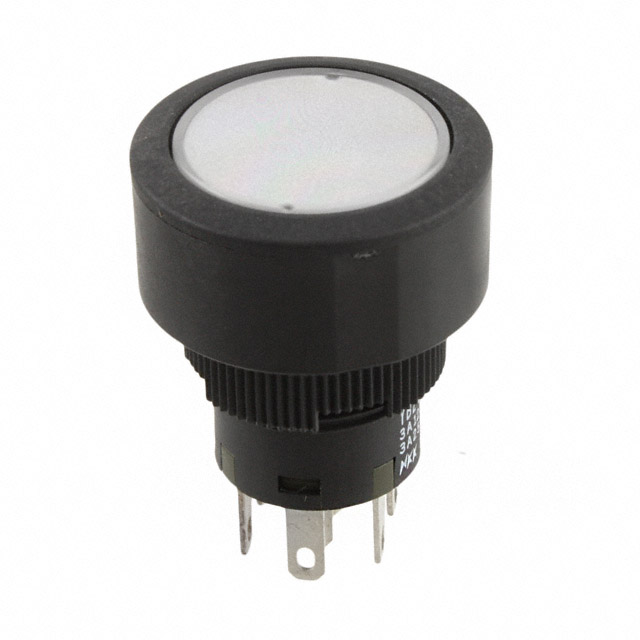

NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Clear | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Illuminated Standard | DPDT | -25 °C | 50 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | 12 VDC | Amber LED | ||
NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | Red | 3 A | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Button Flush Round | IP65 - Dust Tight Water Resistant | 30 V | 125 V | ||||
NKK Switches | 1000000 Cycles | 100000 Cycles | 22 mm | 0.4 VA | On-Mom | Panel Mount Front | Tactile Feedback | No Marking | Standard | DPDT | -25 °C | 70 °C | Solder Quick Connect - 0.110" (2.8mm) | Plunger for Cap | IP65 - Dust Tight Water Resistant | 28 V | 28 V |
