MAV0120 Series

Catalog

PUSHBUTTON SWITCHES 12MM SS AVSWITCH 12V YLW LED RING ILLUM

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Switch Function	Mounting Type	Features	Illumination Voltage (Nominal)	Type	Circuit	Ingress Protection	Color - Actuator/Cap	Voltage Rating - DC	Actuator Marking	Illumination Type, Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
BULGIN LIMITED MAV0120/3D2AM012	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	12 VDC	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Amber LED	2 A	55 °C	-25 °C
BULGIN LIMITED MAV0120/3D1BL024	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	24 V	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Blue LED	2 A	55 °C	-25 °C

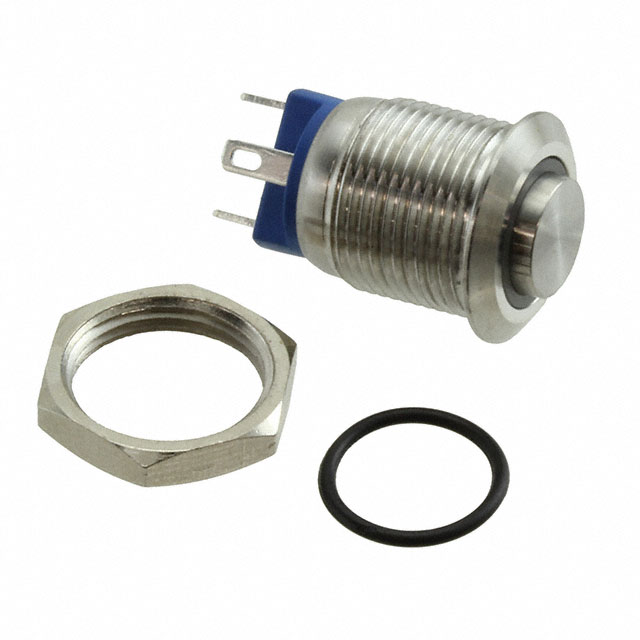

BULGIN LIMITED MAV0120/3D2GN024	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	24 V	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Green LED	2 A	55 °C	-25 °C

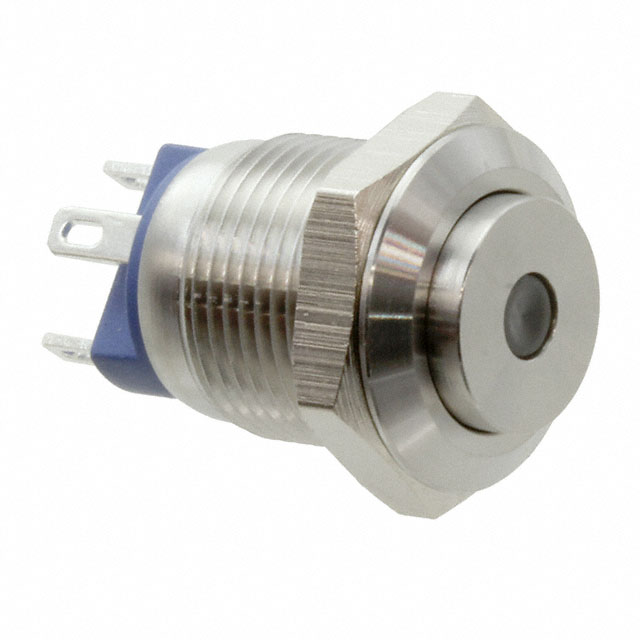

BULGIN LIMITED MAV0120/3D1GN012	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	12 VDC	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Green LED	2 A	55 °C	-25 °C
BULGIN LIMITED MAV0120/3D2RD024	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	24 V	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	LED Red	2 A	55 °C	-25 °C

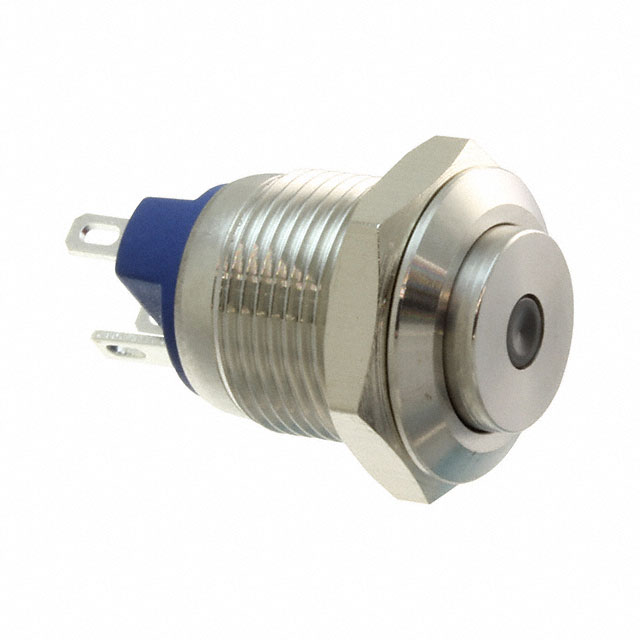

BULGIN LIMITED MAV0120/3D1RD024	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	24 V	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	LED Red	2 A	55 °C	-25 °C
BULGIN LIMITED MAV0120/3D2BL012	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	12 VDC	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Blue LED	2 A	55 °C	-25 °C
BULGIN LIMITED MAV0120/3D1AM012	200000 Cycles	500000 Cycles	12 mm	Button Round	Solder Lug	Off-Mom	Panel Mount Front	Stainless Steel	12 VDC	Anti-Vandal Illuminated	SPST-NO	IP67 - Dust Tight Waterproof	Silver	36 VDC	No Marking	Amber LED	2 A	55 °C	-25 °C
