1337580 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

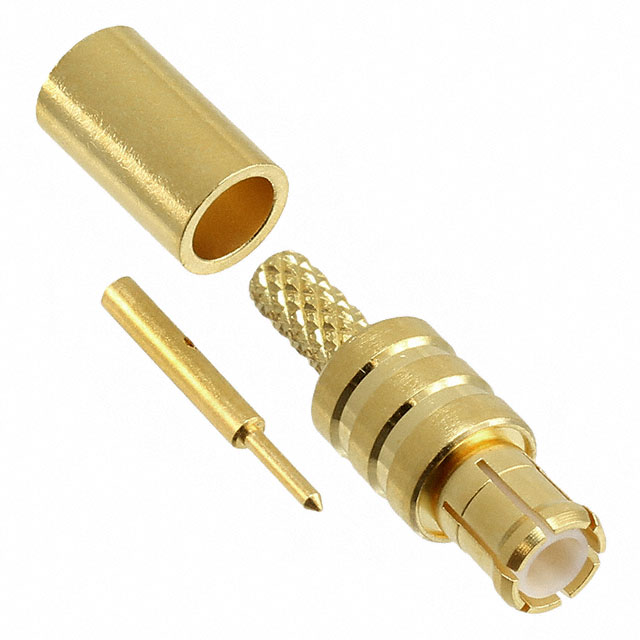

CONN MCX PLUG STR 50 OHM SOLDER
| Part | Mating Cycles | Includes | Body Finish | Dielectric Material | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Contact Termination | Housing Color | Connector Type | Frequency - Max [Max] | Fastening Type | Mounting Type | Shield Termination | Cable Group | Impedance | Number of Ports | Center Contact Material | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | 1 Connector 1 Contact 1 Ferrule | Gold | Polytetrafluoroethylene (PTFE) | Brass | 335 V | Gold | -65 ░C | 165 °C | 0.1 dB | Solder | Gold | Plug Male Pin | 6000 MHz | Snap-On | Free Hanging (In-Line) | Crimp | 188 316 RG-174 | 50 Ohms | 1 | Brass | MCX |
