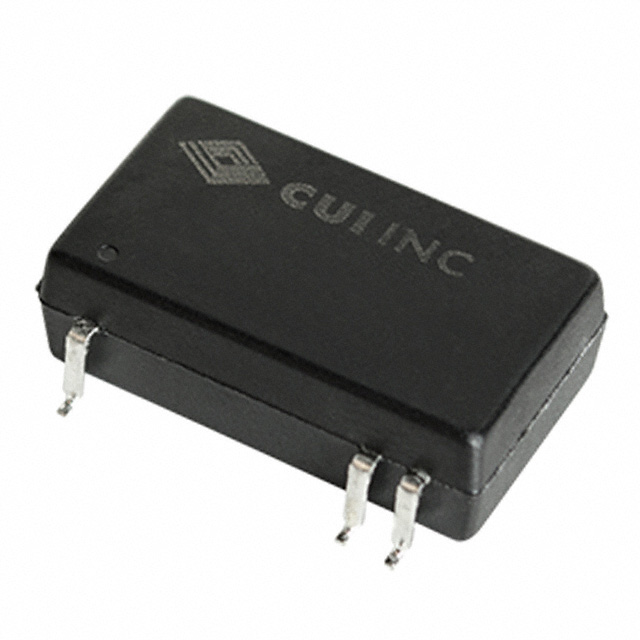

PQM3-D12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 3W

Part	Voltage - Output 1	Efficiency	Voltage - Isolation	Standard Number	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Power (Watts)
CUI Inc. PQM3-D12-S12-M-TR	12 V	80 %	1.5 kV	55024 55032	250 mA	1	Surface Mount	0.94 in	0.31 "	0.54 in	8 mm	13.7 mm	23.9 mm	EN	16-SMD Module 6 Leads	ITE (Commercial)	105 C	-40 °C	SCP	18 V	9 V	Isolated Module	3 W
CUI Inc. PQM3-D12-S15-M-TR	15 V	80 %	1.5 kV	55024 55032	200 mA	1	Surface Mount	0.94 in	0.31 "	0.54 in	8 mm	13.7 mm	23.9 mm	EN	16-SMD Module 6 Leads	ITE (Commercial)	105 C	-40 °C	SCP	18 V	9 V	Isolated Module	3 W
CUI Inc. PQM3-D12-S5-M	5 V	75 %	1.5 kV	55024 55032	600 mA	1	Surface Mount	0.94 in	0.31 "	0.54 in	8 mm	13.7 mm	23.9 mm	EN	16-SMD Module 6 Leads	ITE (Commercial)	105 C	-40 °C	SCP	18 V	9 V	Isolated Module	3 W
