16_MCX-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

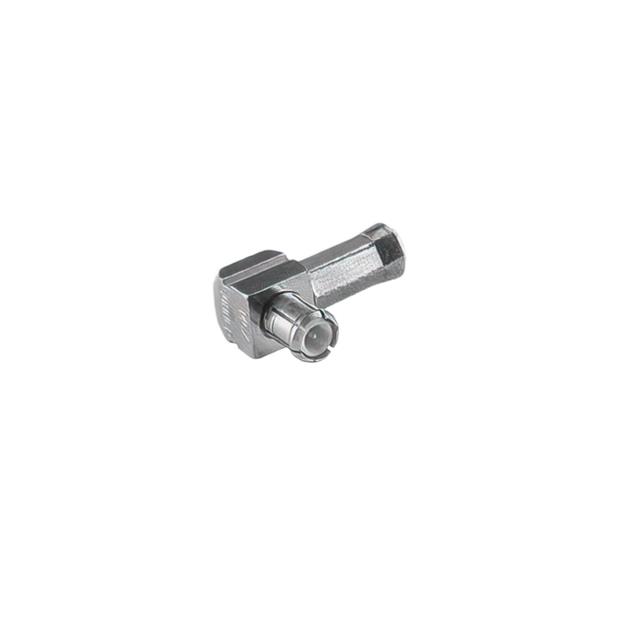

16_MCX-50-2-11/133_NH
| Part | Mating Cycles | Voltage Rating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Center Contact Plating | Connector Type | Impedance | Center Contact Material | Frequency - Max [Max] | Cable Group | Number of Ports | Contact Termination | Mounting Type | Connector Style | Fastening Type | Housing Color | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 500 | 170 V | White Bronze | 155 C | -55 C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | RG-316 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Silver | Crimp | |
 Huber+Suhner, Inc. | 500 | 170 V | Gold | 165 °C | -65 ░C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | RG-178 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Crimp | 196 |
Huber+Suhner, Inc. | 500 | 170 V | Gold | 165 °C | -65 ░C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 188 316 RG-174 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Crimp | |
 Huber+Suhner, Inc. | 500 | 170 V | Gold | 165 °C | -65 ░C | Beryllium Copper | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Solder | 0.047 in | |
 Huber+Suhner, Inc. | 500 | 170 V | White Bronze | 155 C | -55 C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 188 316 RG-174 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Silver | Crimp | |
 Huber+Suhner, Inc. | 500 | 170 V | Gold | 165 °C | -65 ░C | Beryllium Copper | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 316 RG-188 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Solder | |
 Huber+Suhner, Inc. | 500 | 170 V | White Bronze | 155 C | -55 C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | RD-316 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Silver | Crimp | |
 Huber+Suhner, Inc. | 500 | 170 V | Gold | 155 C | -55 C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | RG-178 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Crimp | 196 |
Huber+Suhner, Inc. | 500 | 170 V | White Bronze | 155 C | -55 C | Beryllium Copper | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 188 316 RG-174 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Silver | Crimp | |
Huber+Suhner, Inc. | 500 | 170 V | Gold | 155 C | -55 C | Brass | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Plug Male Pin | 50 Ohms | Brass | 6000 MHz | 188 316 RG-174 | 1 | Solder | Free Hanging (In-Line) Right Angle | MCX | Snap-On | Gold | Crimp |
