09K121 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION 2.40 ADAPTER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Insertion Loss | Dielectric Material | Mating Cycles | Convert To (Adapter End) | Convert To (Adapter End) | Center Gender | Center Contact Plating | Impedance | Conversion Type | Adapter Series | Frequency - Max [Max] | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type | Style | Adapter Type | For Use With/Related Products | Type | Specifications | Specifications | Accessory Type | Voltage Rating | Contact Termination | Fastening Type | Housing Color | Connector Style [x] | Connector Style | Connector Style | Number of Ports | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

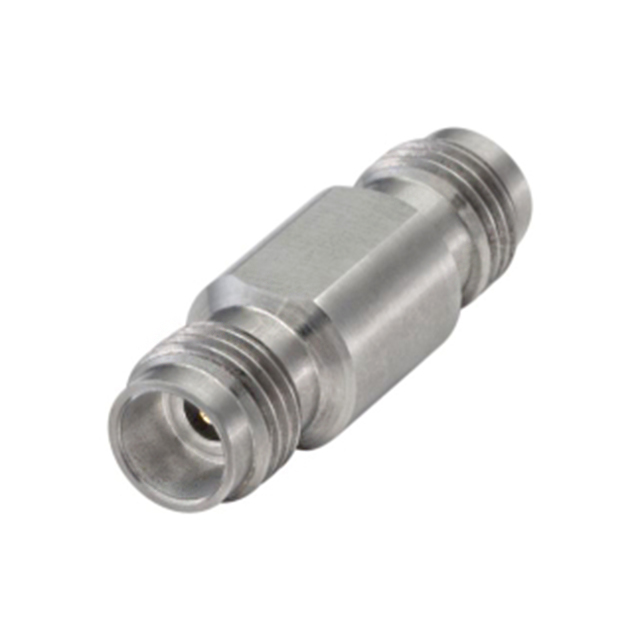

 Rosenberger | 85 °C | -40 C | Stainless Steel | Beryllium Copper | 0.35 dB | Polyetheretherketone (PEEK) | 500 | 2.4 mm | (APC-2.4 OS-50) Jack Female Socket | Female to Female | Gold | 50 Ohms | Same Series | RPC-2.40 to RPC-2.40 | 50 GHz | APC-2.4 Female Socket Jack OS-50 | 2.4 mm | Free Hanging (In-Line) | Straight | Jack to Jack | |||||||||||||||
 Rosenberger | Network Analyzer | Specialized | 2.4 Jack | Jack | Calibration Adapter | ||||||||||||||||||||||||||||||

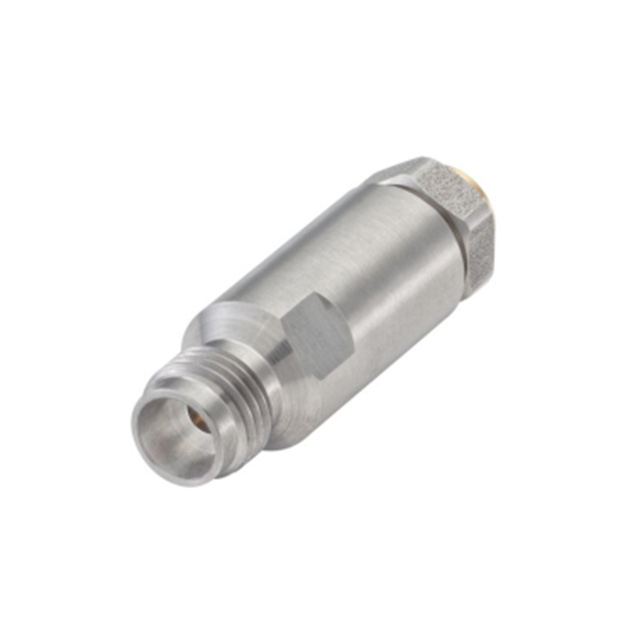

 Rosenberger | 85 °C | -40 C | Stainless Steel | Beryllium Copper | Polyetheretherketone (PEEK) | 500 | Gold | 50 Ohms | 50 GHz | Free Hanging (In-Line) | 150 VDC | Solder | Threaded | Silver | 2.4 mm | OS-50 | APC-2.4 | 1 | Female Socket Jack | Solder |
