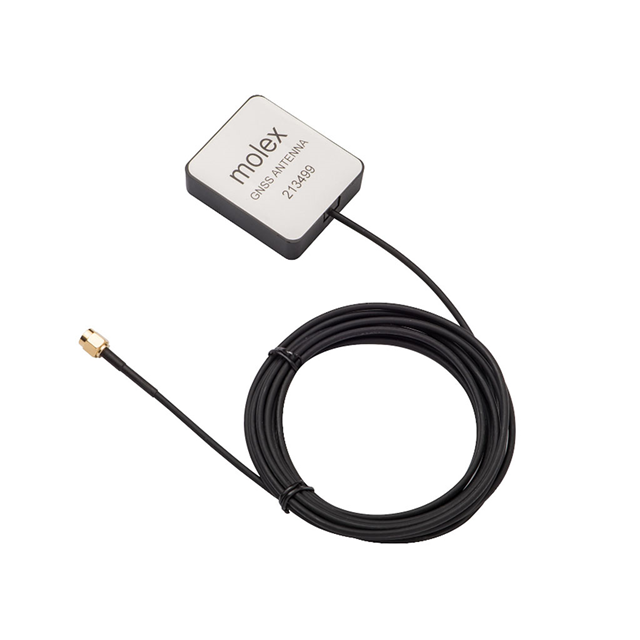

213499 Series
GNSS External Antenna, Magnetic Mount, 3.0m Cables with SMA Male Connector
Manufacturer: Molex
Catalog
GNSS External Antenna, Magnetic Mount, 3.0m Cables with SMA Male Connector
Beta
⌘K
GNSS External Antenna, Magnetic Mount, 3.0m Cables with SMA Male Connector
GNSS External Antenna, Magnetic Mount, 3.0m Cables with SMA Male Connector
GNSS External Antenna, Magnetic Mount, 3.0m Cables with SMA Male Connector
| Part | Frequency Range [Min] | Frequency Range [Max] | Mounting Type | Frequency (Center/Band) | Antenna Type | Number of Bands | Applications | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Return Loss | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Gain | Features | Features | RF Family/Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1.559 GHz 1.574 GHz 1.598 GHz | 1.563 GHz 1.576 GHz 1.606 GHz | Magnetic | 1.561 GHz 1.575 GHz 1.602 GHz | Module | 3 | Beidou Galileo GLONASS GNSS GPS | 16.7 mm | 0.657 in | -10 dB | 2 GHz | 1 GHz | UHF | -1.7 dBi -1.4 dBi | Cable | 3 m | Navigation |
