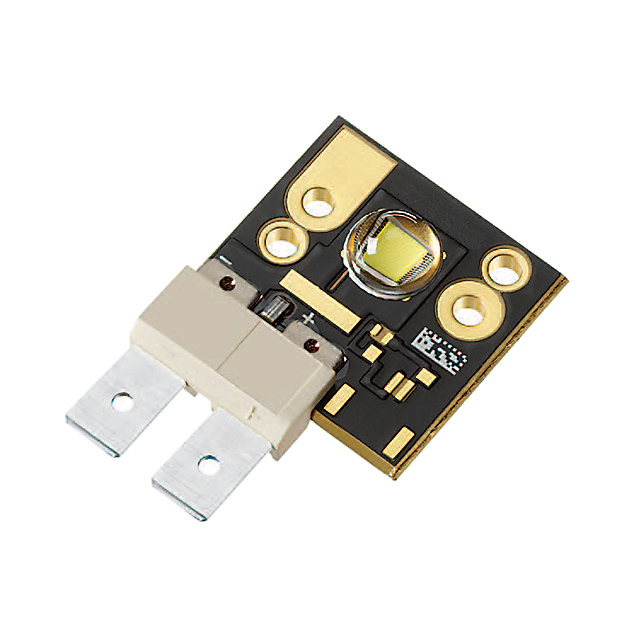

CST-90-W Series

Catalog

LED MOD CST-90 CL WH RECT 6500K

Part	Lumens/Watt @ Current - Test	Lens Type	Temperature - Test	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Current - Test	Type	CCT (K)	CRI (Color Rendering Index)	Current - Max [Max]	Configuration	Height [z]	Color	Features	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]
Luminus Devices Inc. CST-90-W65S-C12-GN102	90 lm/W	Domed	40 °C	95 °	42 mm	28 mm	3 mm	3 mm	925 lm	850 lm	1000 lm	3.15 A	LED Module	6500 K	70	13.5 A	Rectangle	5.61 mm	Cool White	With Connector	3.25 V
Luminus Devices Inc. CST-90-WDLS-C13-GN150	90 lm/W	Domed	25 °C		28 mm	42 mm			925 lm	850 lm	1000 lm	3.15 A	LED Module	5700 K	70	13.5 A	Square	7.9 mm	Cool White	With Connector	3.25 V	8 mm
Luminus Devices Inc. CST-90-W40S-C12-GL500	63 lm/W	Domed	25 °C		28 mm	42 mm				600 lm	700 lm	3.15 A	LED Module	4000 K	70	13.5 A	Square	7.9 mm	Neutral White	With Connector	3.25 V	8 mm
