VOT8123 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

NZC, 800V, DIP6, 6PIN OPTOTRIAC,

Part	Voltage - Off State	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Package / Case	Current - On State (It (RMS)) (Max) [Max]	Static dV/dt (Min) [Min]	Mounting Type	Output Type	Approval Agency	Number of Channels [custom]	Current - Hold (Ih)	Supplier Device Package	Current - LED Trigger (Ift) (Max) [Max]	Package / Case	Package / Case
Vishay Semiconductor Opto Division VOT8123AB-VT2	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA
Vishay Semiconductor Opto Division VOT8123AB-T	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA

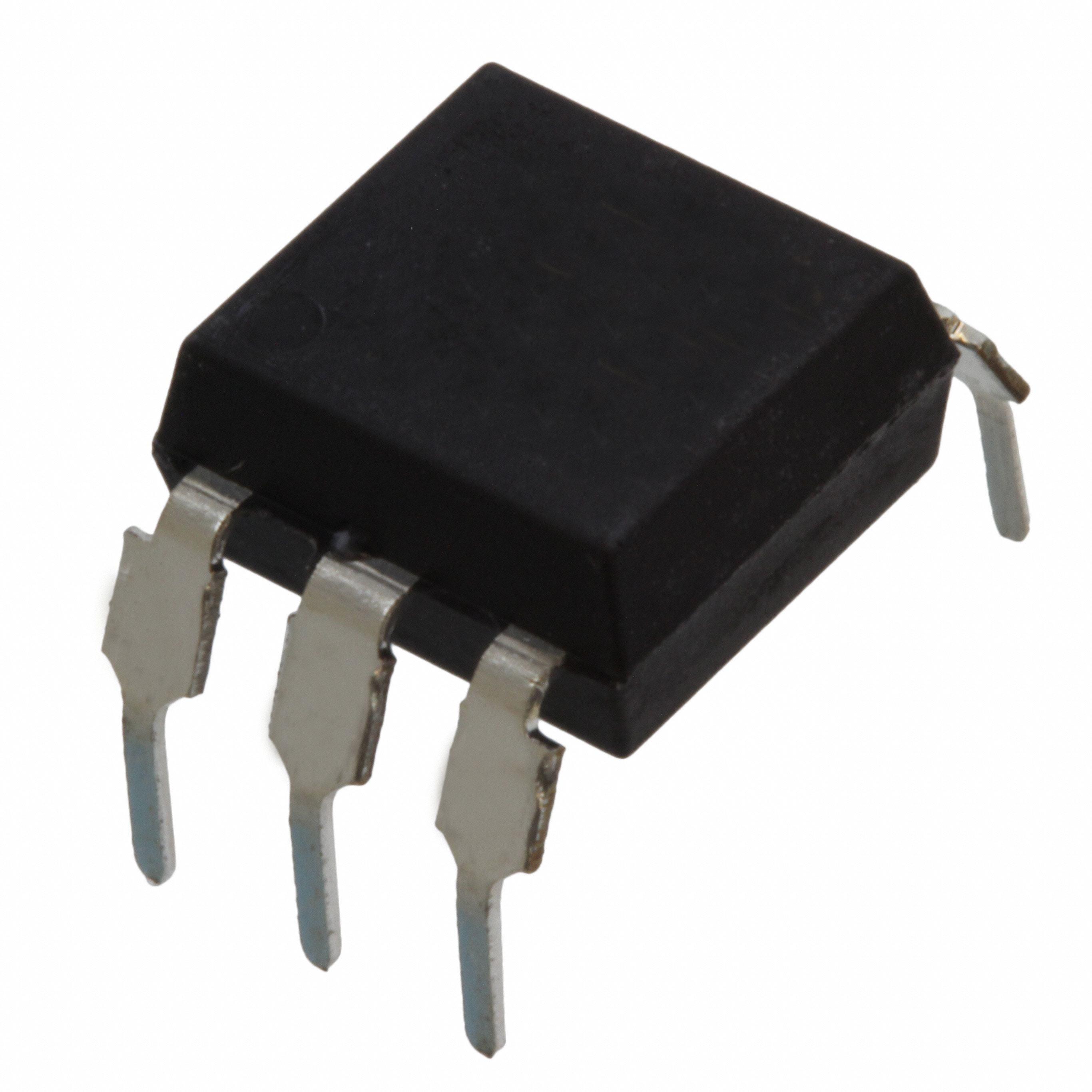

Vishay Semiconductor Opto Division VOT8123AD-V	800 V	-40 C	110 °C	50 mA	6-DIP (0.300" 7.62mm)	100 mA	1 kV/µs	Through Hole	Triac	CQC cUL UL VDE	1	400 µA	6-DIP	10 mA

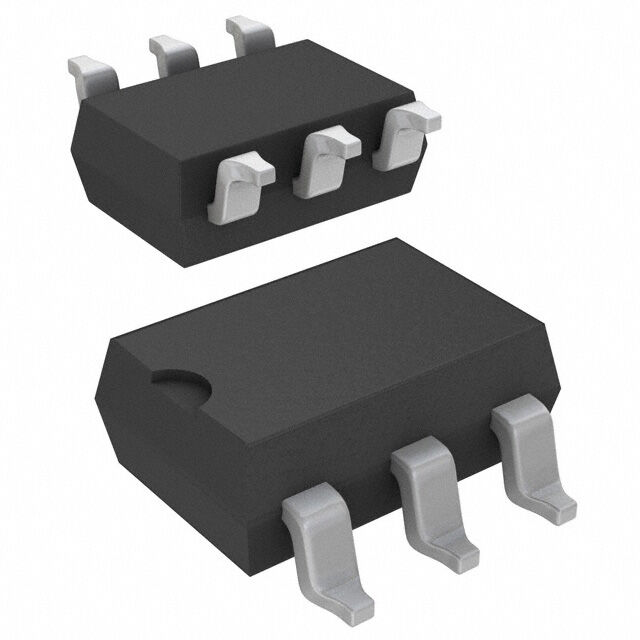

Vishay Semiconductor Opto Division VOT8123AB-V	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA
Vishay Semiconductor Opto Division VOT8123AD	800 V	-40 C	110 °C	50 mA	6-DIP (0.300" 7.62mm)	100 mA	1 kV/µs	Through Hole	Triac	CQC cUL UL VDE	1	400 µA	6-DIP	10 mA
Vishay Semiconductor Opto Division VOT8123AB-VT	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA
Vishay Semiconductor Opto Division VOT8123AG-V	800 V	-40 C	110 °C	50 mA	6-DIP	100 mA	1 kV/µs	Through Hole	Triac	CQC cUL UL VDE	1	400 µA	6-DIP	10 mA	10.16 mm	0.4 in
Vishay Semiconductor Opto Division VOT8123AB-T2	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA
Vishay Semiconductor Opto Division VOT8123AG	800 V	-40 C	110 °C	50 mA	6-DIP	100 mA	1 kV/µs	Through Hole	Triac	CQC cUL UL VDE	1	400 µA	6-DIP	10 mA	10.16 mm	0.4 in
Vishay Semiconductor Opto Division VOT8123AB	800 V	-40 C	110 °C	50 mA	6-SMD Gull Wing	100 mA	1 kV/µs	Surface Mount	Triac	CQC cUL UL VDE	1	400 µA	6-SMD	10 mA
