AWH 16G Series

Catalog

CONN HEADER 16POS IDC GOLD

Part	Wire Type	Pitch	Pitch	Mounting Type	Color	Number of Rows [custom]	Features	Row Spacing	Row Spacing	Connector Type	Contact Finish	Number of Positions	Contact Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Material	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Shrouding	Insulation Color

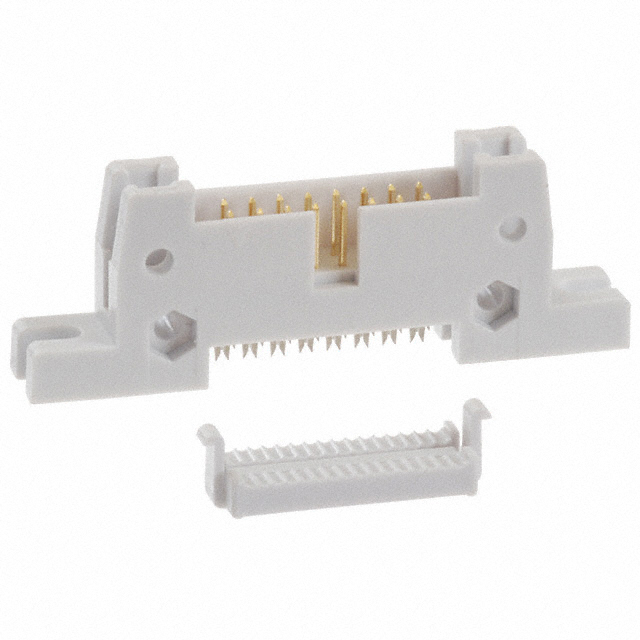

Assmann WSW Components AWH16G-E202-IDC-R	Ribbon Cable	0.1 "	2.54 mm	Panel Mount	Gray	2	Feed Through	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC

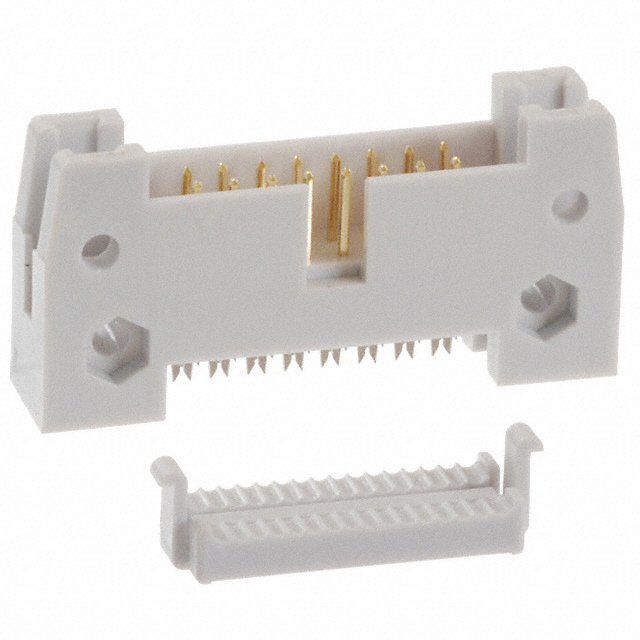

Assmann WSW Components AWH 16G-0202-IDC	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line) Right Angle	Gray	2	Feed Through Polarizing Key	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC	0.025 µm	1 µin

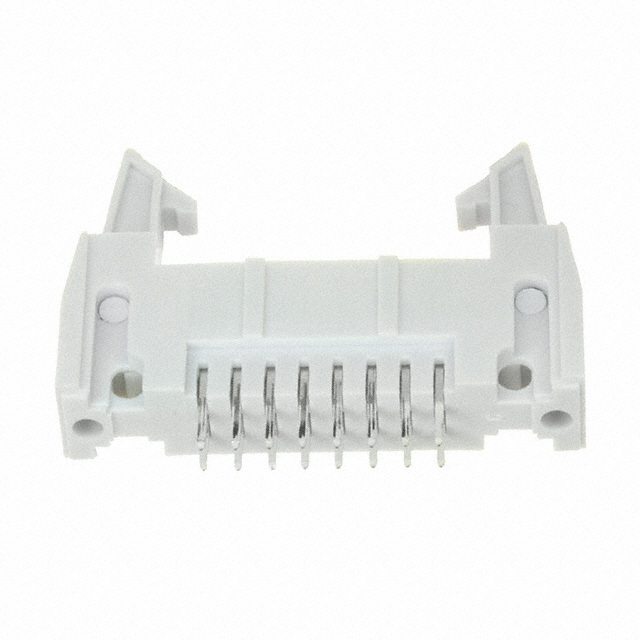

Assmann WSW Components AWH16G-0232-T-R				Through Hole		2	Keying Slot			Header		16	Male Pin				0.13 "	3.3 mm	Gold	Square	Tin	17 mm	0.669 in	UL94 V-0	Solder	Brass	All	0.1 in	2.54 mm	Flash	3 A	0.1 "	2.54 mm	Latch Lock/Eject Hooks Long	Polybutylene Terephthalate (PBT) Glass Filled	-40 C	105 ░C	Board to Cable/Wire	Shrouded - 4 Wall	Gray
Assmann WSW Components AWH 16G-0232-IDC	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Gray	2	Feed Through	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC																				Latch Lock/Eject Hooks Long

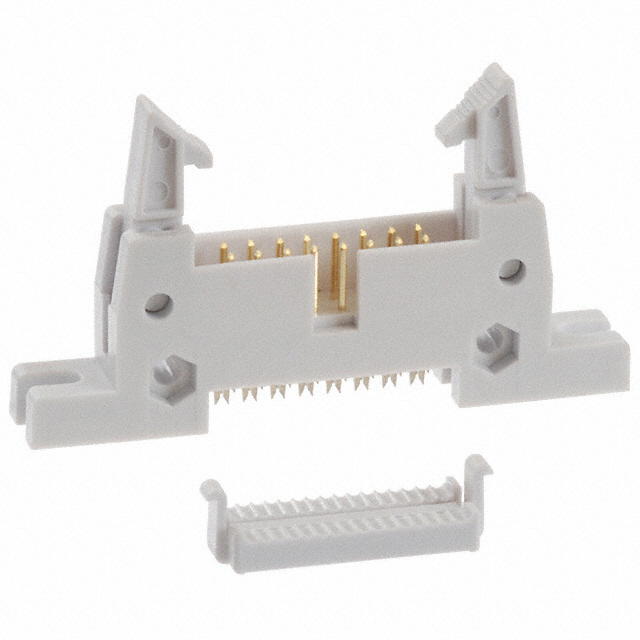

Assmann WSW Components AWH16G-E232-IDC-R	Ribbon Cable	0.1 "	2.54 mm	Panel Mount	Gray	2	Feed Through	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC																				Latch Lock/Eject Hooks Long

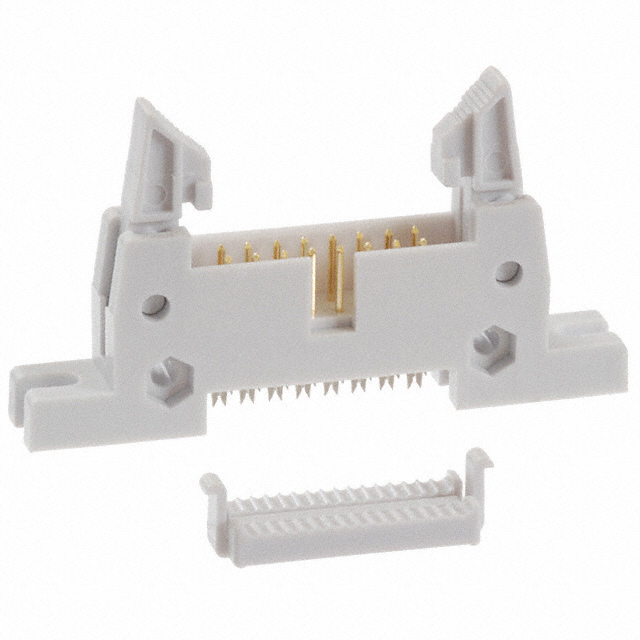

Assmann WSW Components AWH16G-E222-IDC-R	Ribbon Cable	0.1 "	2.54 mm	Panel Mount	Gray	2	Feed Through	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC																				Latch Lock/Eject Hooks
Assmann WSW Components AWH16G-0202-IDC-R	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Gray	2	Feed Through	2.54 mm	0.1 "	Header	Gold	16	Male Pin	IDC

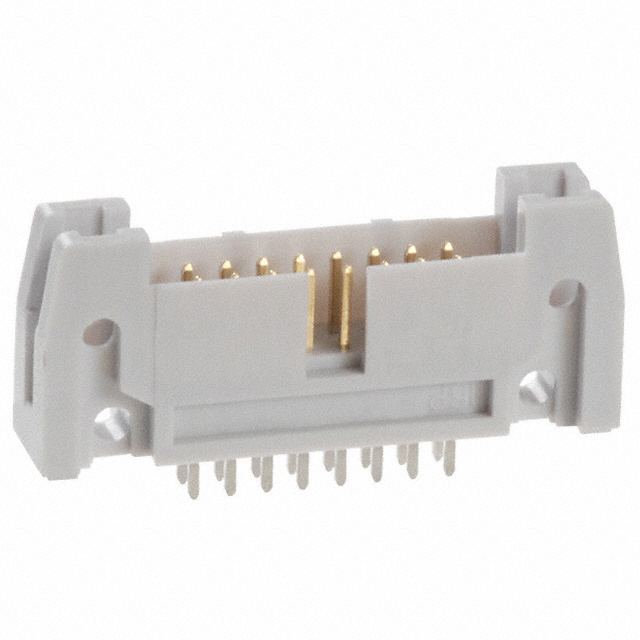

Assmann WSW Components AWH16G-0202-T-R				Through Hole		2	Keying Slot			Header		16	Male Pin				0.13 "	3.3 mm	Gold	Square	Tin	17 mm	0.669 in	UL94 V-0	Solder	Brass	All	0.1 in	2.54 mm	Flash	3 A	0.1 "	2.54 mm	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	-40 C	105 ░C	Board to Cable/Wire	Shrouded - 4 Wall	Gray
Assmann WSW Components AWH 16G-0222-T				Through Hole		2	Keying Slot			Header		16	Male Pin				0.13 "	3.3 mm	Gold	Square	Tin	17 mm	0.669 in	UL94 V-0	Solder	Brass	All	0.1 in	2.54 mm	Flash	3 A	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Polybutylene Terephthalate (PBT) Glass Filled	-40 C	105 ░C	Board to Cable/Wire	Shrouded - 4 Wall	Gray
