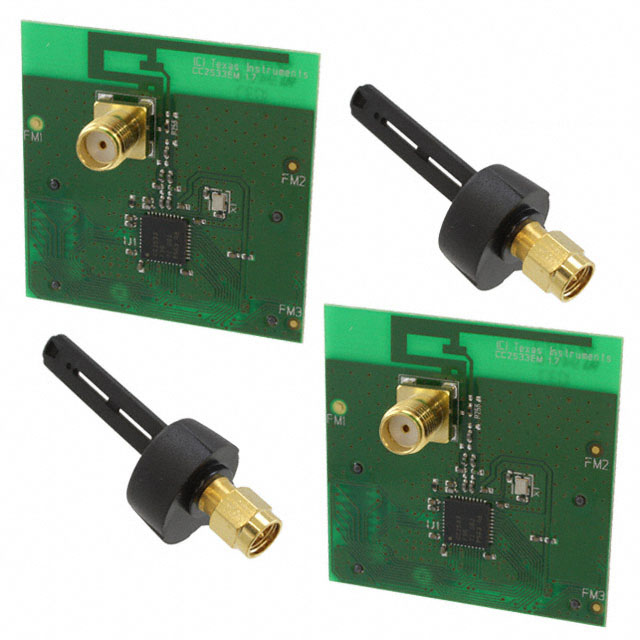

CC2533 Series
A True System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications
Manufacturer: Texas Instruments
Catalog
A True System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications
Key Features
• RF/Layout2.4-GHz IEEE 802.15.4 Compliant RF TransceiverExcellent Receiver Sensitivity and Robustness to InterferenceProgrammable Output Power Up to 4.5 dBmBoost-Mode TX at 7 dBmVery Few External ComponentsOnly a Single Crystal Needed for Asynchronous NetworksSpace-Saving 6-mm × 6-mm QFN40 PackageSuitable for Systems Targeting Compliance With WorldwideRadio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe),FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan)Pin- and Software-Compatible With the CC2530Fxxx SeriesLow PowerActive-Mode RX (CPU Idle): 25 mAActive Mode TX at 0 dBm (CPU Idle): 28.5 mAPower Mode 1 (4 µs Wake-Up): 0.2 mAPower Mode 2 (Sleep Timer Running): 1 µAPower Mode 3 (External Interrupts): 0.5 µAWide Supply-Voltage Range (2 V–3.6 V)MicrocontrollerHigh-Performance and Low-Power 8051 Microcontroller CoreWith Code Prefetch64- or 96-KB In-System-Programmable Flash4- or 6-KB RAM With Retention in All Power ModesHardware Debug SupportPeripheralsPowerful Five-Channel DMAIEEE 802.15.4 MAC Timer, General-Purpose Timers(One 16-Bit, Two 8-Bit)IR Generation Circuitry32-kHz Sleep Timer With CaptureCSMA/CA Hardware SupportAccurate Digital RSSI/LQI SupportBattery Monitor ComparatorRandom Number GenerationAES Security CoprocessorTwo Powerful USARTs With Support for UART and SPII2C Interface23 General-Purpose I/O PinsWatchdog TimerDevelopment ToolsCC2533 Remote Control Development Kit for RF4CECC2533 Development KitCC2533EMK Evaluation ModulesSmartRF™ SoftwarePacket SnifferIAR Embedded Workbench™ AvailableAPPLICATIONSZigBee™ RF4CE Remote Control Target and Device2.4-GHz IEEE 802.15.4 Systems Based on TIMAC orSimpliciTI™ Network ProtocolConsumer ElectronicsElectronic Shelf LabelingRF/Layout2.4-GHz IEEE 802.15.4 Compliant RF TransceiverExcellent Receiver Sensitivity and Robustness to InterferenceProgrammable Output Power Up to 4.5 dBmBoost-Mode TX at 7 dBmVery Few External ComponentsOnly a Single Crystal Needed for Asynchronous NetworksSpace-Saving 6-mm × 6-mm QFN40 PackageSuitable for Systems Targeting Compliance With WorldwideRadio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe),FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan)Pin- and Software-Compatible With the CC2530Fxxx SeriesLow PowerActive-Mode RX (CPU Idle): 25 mAActive Mode TX at 0 dBm (CPU Idle): 28.5 mAPower Mode 1 (4 µs Wake-Up): 0.2 mAPower Mode 2 (Sleep Timer Running): 1 µAPower Mode 3 (External Interrupts): 0.5 µAWide Supply-Voltage Range (2 V–3.6 V)MicrocontrollerHigh-Performance and Low-Power 8051 Microcontroller CoreWith Code Prefetch64- or 96-KB In-System-Programmable Flash4- or 6-KB RAM With Retention in All Power ModesHardware Debug SupportPeripheralsPowerful Five-Channel DMAIEEE 802.15.4 MAC Timer, General-Purpose Timers(One 16-Bit, Two 8-Bit)IR Generation Circuitry32-kHz Sleep Timer With CaptureCSMA/CA Hardware SupportAccurate Digital RSSI/LQI SupportBattery Monitor ComparatorRandom Number GenerationAES Security CoprocessorTwo Powerful USARTs With Support for UART and SPII2C Interface23 General-Purpose I/O PinsWatchdog TimerDevelopment ToolsCC2533 Remote Control Development Kit for RF4CECC2533 Development KitCC2533EMK Evaluation ModulesSmartRF™ SoftwarePacket SnifferIAR Embedded Workbench™ AvailableAPPLICATIONSZigBee™ RF4CE Remote Control Target and Device2.4-GHz IEEE 802.15.4 Systems Based on TIMAC orSimpliciTI™ Network ProtocolConsumer ElectronicsElectronic Shelf Labeling
Description
AI
The CC2533 is an optimized system-on-chip (SoC) solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. It also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs.
The CC2533 combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, up to 96-KB in-system programmable flash memory, up to 6-KB RAM, and many other powerful features. The CC2533 has efficient power modes with RAM and register retention below 1 µA, making it highly suited for low-duty-cycle systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2533 provides a robust and complete ZigBee RF4CE remote-control solution. It is also ideal for implementing the target side of a remote-control system in a network processor configuration with an SPI/UART/I2C interface. The CC2533 comes complete with reference designs and example software that implement a remote control system to ensure efficient design-in.
The CC2533 exists in three memory-size configurations:
CC2533F32– 32-KB Flash, 4-KB RAM
CC2533F64– 64-KB Flash, 4-KB RAM
CC2533F96– 96-KB Flash, 6-KB RAM
The CC2533 is an optimized system-on-chip (SoC) solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. It also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs.
The CC2533 combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, up to 96-KB in-system programmable flash memory, up to 6-KB RAM, and many other powerful features. The CC2533 has efficient power modes with RAM and register retention below 1 µA, making it highly suited for low-duty-cycle systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2533 provides a robust and complete ZigBee RF4CE remote-control solution. It is also ideal for implementing the target side of a remote-control system in a network processor configuration with an SPI/UART/I2C interface. The CC2533 comes complete with reference designs and example software that implement a remote control system to ensure efficient design-in.
The CC2533 exists in three memory-size configurations:
CC2533F32– 32-KB Flash, 4-KB RAM
CC2533F64– 64-KB Flash, 4-KB RAM
CC2533F96– 96-KB Flash, 6-KB RAM
