392-108 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 108POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Pitch	Pitch	Contact Type	Mounting Type	Read Out	Number of Positions	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Termination	Card Type	Number of Rows [custom]

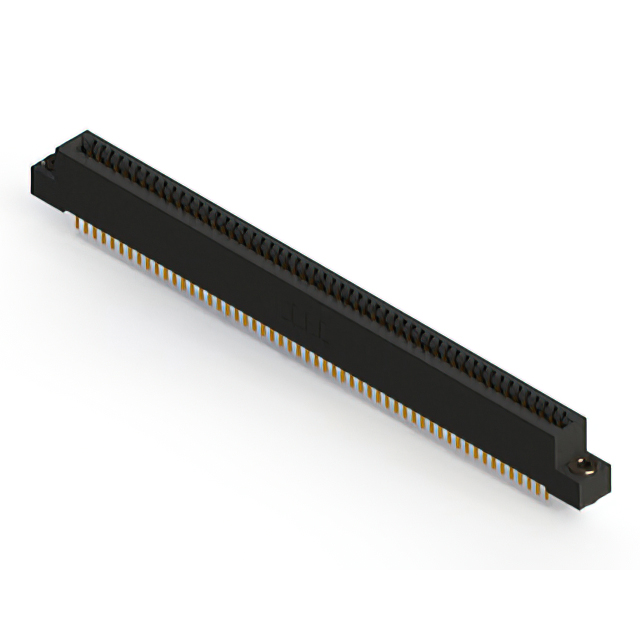

EDAC Inc. 392-108-521-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	Solder	Non Specified - Dual Edge	2
EDAC Inc. 392-108-558-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Right Angle Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	Solder Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-541-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female				Gold	Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-559-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Right Angle Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female		4-40 Flush Mount Threaded Insert Top Opening		Gold	Solder Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-541-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female		Flush Mount M3 Threaded Insert Top Opening		Gold	Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-540-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female		Flush Mount M3 Threaded Insert Top Opening		Gold	Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-540-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female		4-40 Flush Mount Threaded Insert Top Opening		Gold	Wire Wrap	Non Specified - Dual Edge	2
EDAC Inc. 392-108-523-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female		4-40 Flush Mount Threaded Insert Top Opening		Gold	Solder	Non Specified - Dual Edge	2
EDAC Inc. 392-108-541-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	Wire Wrap	Non Specified - Dual Edge	2

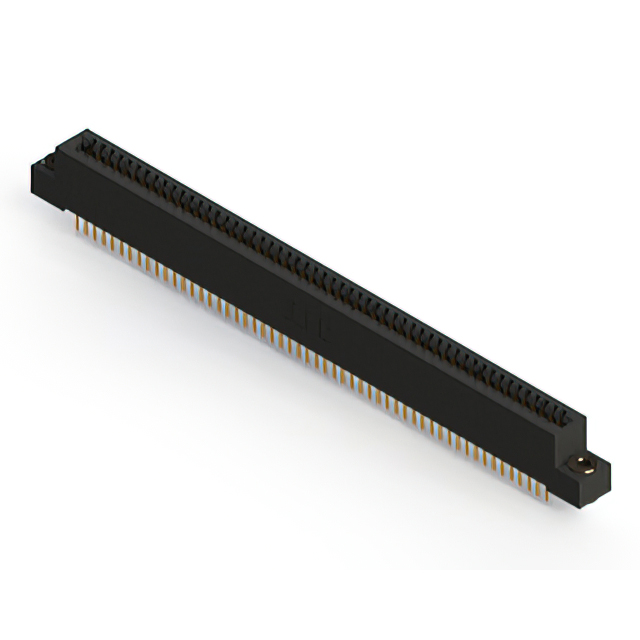

EDAC Inc. 392-108-524-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	0.1 "	2.54 mm	Cantilever	Through Hole	Dual	108	54	0.25 Ám	10 Áin	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	Solder	Non Specified - Dual Edge	2
