380-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

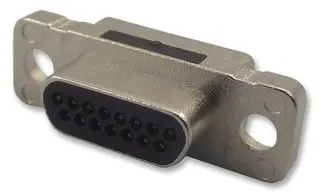

MICRO D SUB CONNECTOR, MICRO D 380 SERIES, RECEPTACLE, 15, THROUGH HOLE ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Termination | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Number of Positions | Mounting Type | Contact Finish | Shell Material, Finish | Number of Rows [custom] | Contact Type | Connector Type | Flange Feature | Features | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | Brass | Solder | 0.38 µm | 15 µin | 0.043 in | 0.05 in | 15 | Panel Mount Through Hole | Gold | Nickel Plated Zinc Alloy | 2 | Signal | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Shielded | D-Type Micro-D |
 NorComp Inc. | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | Beryllium Copper | Solder | 0.38 µm | 15 µin | 0.043 in | 0.05 in | 15 | Panel Mount Through Hole | Gold | Nickel Plated Zinc Alloy | 2 | Signal | Plug Male Pins | Housing/Shell (Unthreaded) | Shielded | D-Type Micro-D |
