2825261 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
8P VAL-U-LOK HCS VRT HDR W/P V0
| Part | Number of Rows | Material Flammability Rating | Contact Finish - Post | Connector Type | Contact Type | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Insulation Material | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Shape | Fastening Type | Mounting Type | Shrouding | Pitch - Mating | Pitch - Mating | Voltage Rating | Current Rating (Amps) | Number of Positions | Contact Material | Termination | Style | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

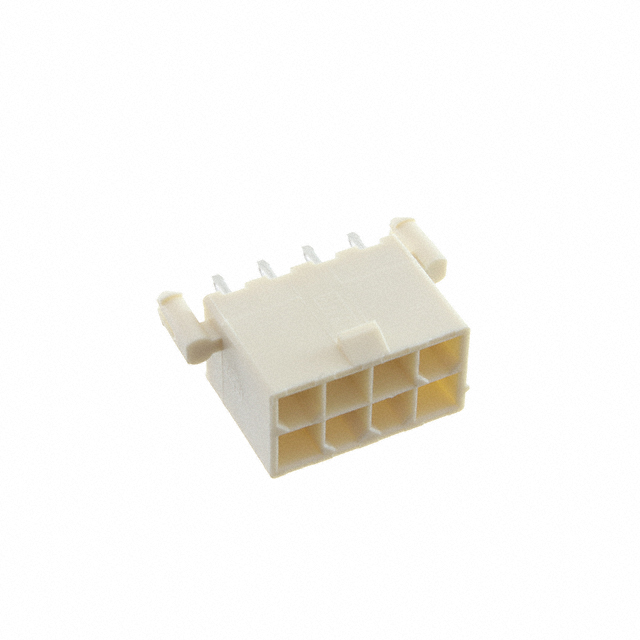

 TE Connectivity Raychem Cable Protection | 2 | UL94 V-0 | Tin | Header | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Natural | Nylon Polyamide (PA) | All | -40 °C | 105 ░C | 12.8 mm | 0.504 in | Square | Locking Ramp | Through Hole | Shrouded - 4 Wall | 4.2 mm | 0.165 in | 600 V | 13 A | 8 | Copper Alloy | Solder | Board to Cable/Wire | Automotive General Purpose Industrial Lighting Medical |
 TE Connectivity Raychem Cable Protection | 2 | UL94 V-0 | Tin | Header | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Natural | Nylon Polyamide (PA) | All | -40 °C | 105 ░C | 12.8 mm | 0.504 in | Square | Locking Ramp | Through Hole | Shrouded - 4 Wall | 4.2 mm | 0.165 in | 600 V | 13 A | 4 | Copper Alloy | Solder | Board to Cable/Wire | Automotive General Purpose Industrial Lighting Medical |

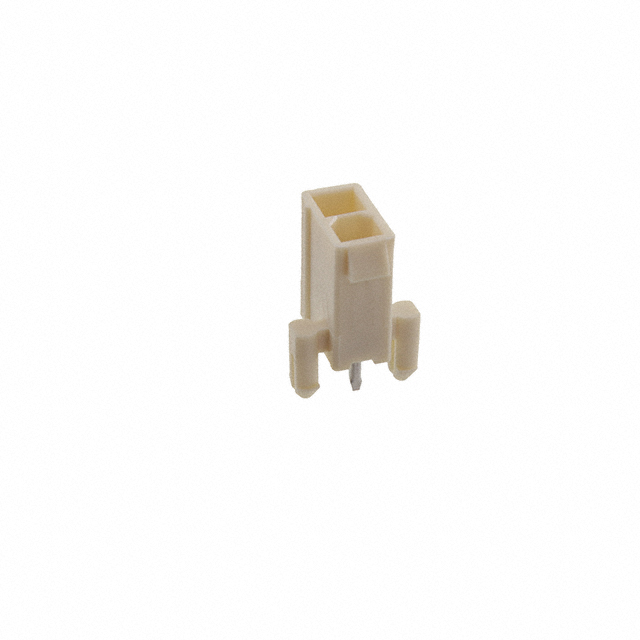

 TE Connectivity Raychem Cable Protection | 2 | UL94 V-0 | Tin | Header | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Natural | Nylon Polyamide (PA) | All | -40 °C | 105 ░C | 12.8 mm | 0.504 in | Square | Locking Ramp | Through Hole | Shrouded - 4 Wall | 600 V | 13 A | 2 | Copper Alloy | Solder | Board to Cable/Wire | Automotive General Purpose Industrial Lighting Medical | ||

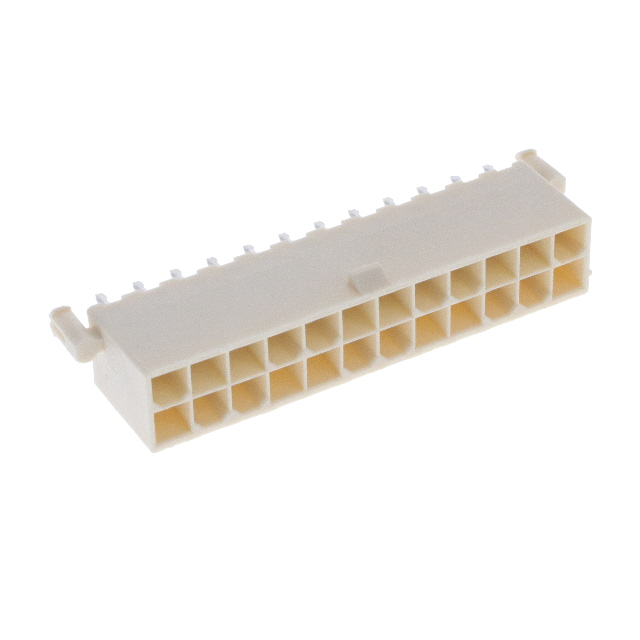

 TE Connectivity Raychem Cable Protection | 2 | UL94 V-0 | Tin | Header | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Natural | Nylon Polyamide (PA) | All | -40 °C | 105 ░C | 12.8 mm | 0.504 in | Square | Locking Ramp | Through Hole | Shrouded - 4 Wall | 4.2 mm | 0.165 in | 600 V | 13 A | 24 | Copper Alloy | Solder | Board to Cable/Wire | Automotive General Purpose Industrial Lighting Medical |

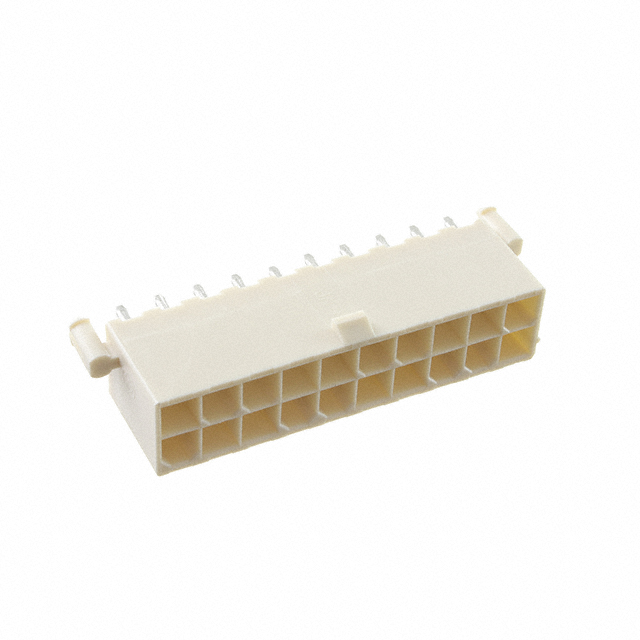

 TE Connectivity Raychem Cable Protection | 2 | UL94 V-0 | Tin | Header | Male Pin | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Natural | Nylon Polyamide (PA) | All | -40 °C | 105 ░C | 12.8 mm | 0.504 in | Square | Locking Ramp | Through Hole | Shrouded - 4 Wall | 4.2 mm | 0.165 in | 600 V | 13 A | 20 | Copper Alloy | Solder | Board to Cable/Wire | Automotive General Purpose Industrial Lighting Medical |
