DBH Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
D-SUB MIXED CONTACT CONNECTORS 25C SOCKET WIRE WRAP BASIC-D SERIES
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Finish Thickness | Number of Positions | Flange Feature | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Connector Style | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Type | Number of Rows [custom] | Termination | Contact Form | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Copper Alloy | -65 ░C | 125 °C | Polyester Glass Filled | White | Flash | 25 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | UL94 V-0 | 5 A | Gold | B DB | 3 | Receptacle Female Sockets | D-Sub | Steel | Clear Chromate Plated Zinc | Signal | 2 | Wire Wrap | ||
Cinch Connectivity Solutions | Copper Alloy | -65 ░C | 125 °C | Polyester Glass Filled | White | Flash | 25 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | UL94 V-0 | 5 A | Gold | B DB | 3 | Receptacle Female Sockets | D-Sub | Steel | Clear Chromate Plated Zinc | Signal | 2 | Stamped | 20 AWG | |

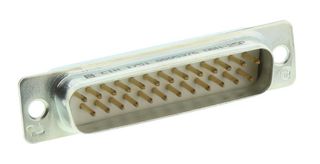

 Cinch Connectivity Solutions | 25 | B DB | 3 | Plug Male Pins | D-Sub | Signal | 2 |
