OSTTF06 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

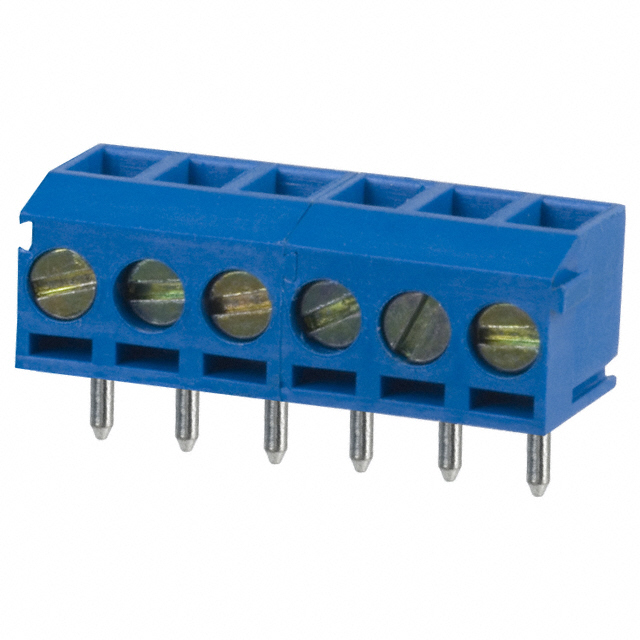

TERM BLK 6P TOP ENTRY 3.5MM PCB
| Part | Screw Material - Plating | Torque - Screw | Torque - Screw | Housing Material | Contact Material - Plating | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Pitch | Pitch | Color | Current | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Wire Termination | Mating Orientation | Number of Levels | Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Steel - Zinc Plated | 1.7 Lb-In | 0.2 Nm | Thermoplastic | Brass - Tin Plated | M2 | -30 ░C | 105 ░C | Stainless Steel | 3.5 mm | 0.138 " | Blue | 10 A | Through Hole | 26 AWG | 16 AWG | 6 | Screw - Leaf Spring Wire Guard | Vertical with Board | 1 | 125 V | Interlocking (Side) |
