8975-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Termination
Mill-Max Manufacturing Corp. 8975-0-15-80-21-14-10-0	-55 C	125 °C	0.91 mm	0.036 in	Beryllium Copper	0.031 in	0.79 mm	6.35 mm	0.25 in	0.042 in	1.07 mm	3.81 mm	0.15 in	Gold	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	Solder

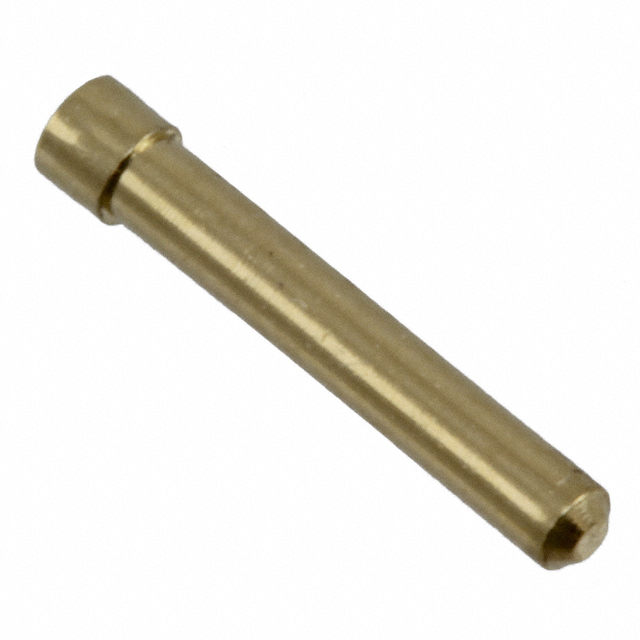

Mill-Max Manufacturing Corp. 8975-0-15-15-21-27-10-0	-55 C	125 °C	0.91 mm	0.036 in	Beryllium Copper	0.031 in	0.79 mm	6.35 mm	0.25 in	0.042 in	1.07 mm	3.81 mm	0.15 in	Gold	0.76 Ám	30 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	Solder
