842-045 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 45POS 0.100

Part	Material - Insulation	Termination Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Card Thickness [Max]	Card Thickness [Min]	Color	Pitch	Pitch	Read Out	Number of Positions	Number of Positions/Bay/Row	Termination	Number of Rows	Contact Material	Gender	Contact Finish	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-045-544-101	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Wire Wrap	1	Copper Alloy	Female	Gold	Cantilever

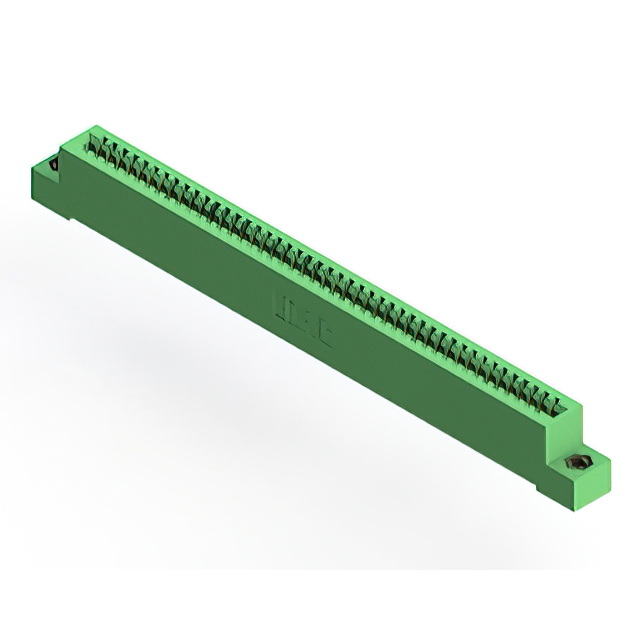

EDAC Inc. 842-045-524-108	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Solder	1	Copper Alloy	Female	Gold	Cantilever	4-40 Flush Mount Threaded Insert Top Opening

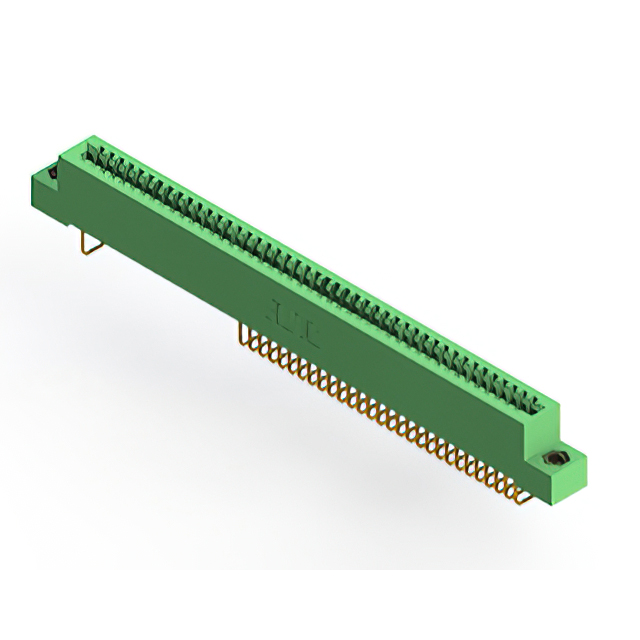

EDAC Inc. 842-045-558-107	Diallyl Phthalate (DAP)	1	Right Angle Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Solder	1	Copper Alloy	Female	Gold	Cantilever	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 842-045-523-102	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Solder	1	Copper Alloy	Female	Gold	Cantilever	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

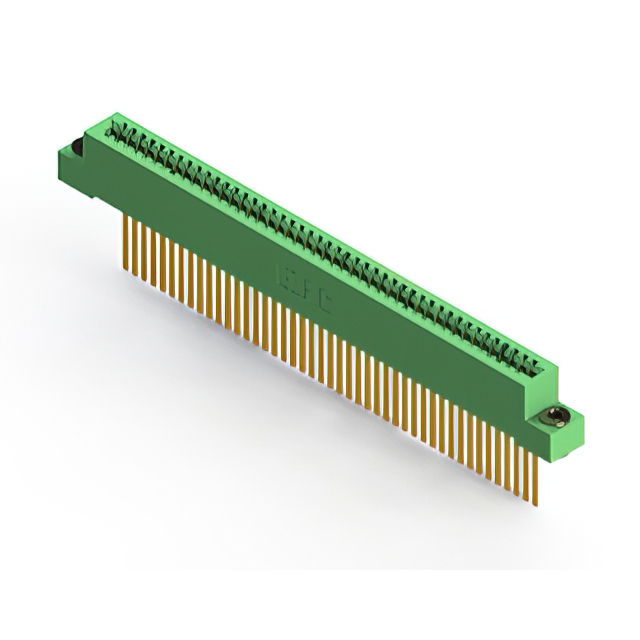

EDAC Inc. 842-045-544-103	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Wire Wrap	1	Copper Alloy	Female	Gold	Cantilever	Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 842-045-541-101	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Wire Wrap	1	Copper Alloy	Female	Gold	Cantilever
EDAC Inc. 842-045-558-112	Diallyl Phthalate (DAP)	1	Right Angle Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Solder	1	Copper Alloy	Female	Gold	Cantilever	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 842-045-541-103	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Wire Wrap	1	Copper Alloy	Female	Gold	Cantilever	Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 842-045-542-104	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Wire Wrap	1	Copper Alloy	Female	Gold	Cantilever	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 842-045-523-101	Diallyl Phthalate (DAP)	1	Through Hole	0.25 Ám	10 Áin	125 °C	-40 C	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	0.1 "	2.54 mm	Single	45	45	Solder	1	Copper Alloy	Female	Gold	Cantilever
