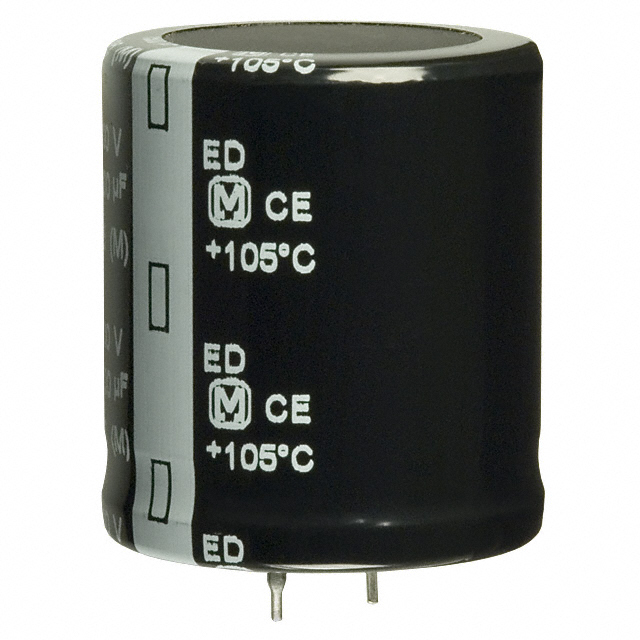

EET-ED Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM 1500UF 20% 200V SNAP TH
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Capacitance | Voltage - Rated | Mounting Type | Applications | Polarization | ESR (Equivalent Series Resistance) | Ripple Current @ Low Frequency | Tolerance | Ripple Current @ High Frequency | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 1.378 in | 35 mm | 1.5 mF | 200 V | Through Hole | General Purpose | Polar | 99 mOhm | 3.56 A | 20 % | 5.08 A | 0.394 in | 10 mm | -40 °C | 105 ░C | Radial Can - Snap-In | 1.575 in | 40 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 0.984 " | 25 mm | 150 µF | 400 V | Through Hole | General Purpose | Polar | 884 mOhm | 1.07 A | 20 % | 1.53 A | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 1.181 " | 30 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 0.866 in | 22 mm | 150 µF | 400 V | Through Hole | General Purpose | Polar | 884 mOhm | 1.07 A | 20 % | 1.53 A | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 1.575 in | 40 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 1.181 inches | 30 mm | 120 µF | 450 V | Through Hole | General Purpose | Polar | 1.105 Ohm | 1.02 A | 20 % | 1.46 A | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 0.984 " | 25 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 1.378 in | 35 mm | 560 µF | 450 V | Through Hole | General Purpose | 20 % | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 2.48 in | 63 mm | 3000 Hrs | ||||
 Panasonic Industrial Automation Sales | 1.181 inches | 30 mm | 150 µF | 450 V | Through Hole | General Purpose | Polar | 884 mOhm | 1.07 A | 20 % | 1.53 A | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 1.181 " | 30 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 0.984 " | 25 mm | 270 µF | 250 V | Through Hole | General Purpose | Polar | 553 mOhm | 1.42 A | 20 % | 2.03 A | 0.394 in | 10 mm | -40 °C | 105 ░C | Radial Can - Snap-In | 0.984 " | 25 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 0.866 in | 22 mm | 56 µF | 450 V | Through Hole | General Purpose | Polar | 2.368 Ohm | 670 mA | 20 % | 950 mA | 0.394 in | 10 mm | -25 °C | 105 ░C | Radial Can - Snap-In | 0.984 " | 25 mm | 3000 Hrs |
Panasonic Industrial Automation Sales | 0.866 in | 22 mm | 560 µF | 200 V | Through Hole | General Purpose | Polar | 266 mOhm | 2.14 A | 20 % | 3.05 A | 0.394 in | 10 mm | -40 °C | 105 ░C | Radial Can - Snap-In | 1.575 in | 40 mm | 3000 Hrs |
 Panasonic Industrial Automation Sales | 1.181 inches | 30 mm | 1000 µF | 250 V | Through Hole | General Purpose | Polar | 149 mOhm | 2.84 A | 20 % | 4.06 A | 0.394 in | 10 mm | -40 °C | 105 ░C | Radial Can - Snap-In | 3000 Hrs |
