725-094 Series

Manufacturer: EDAC Inc.

Catalog

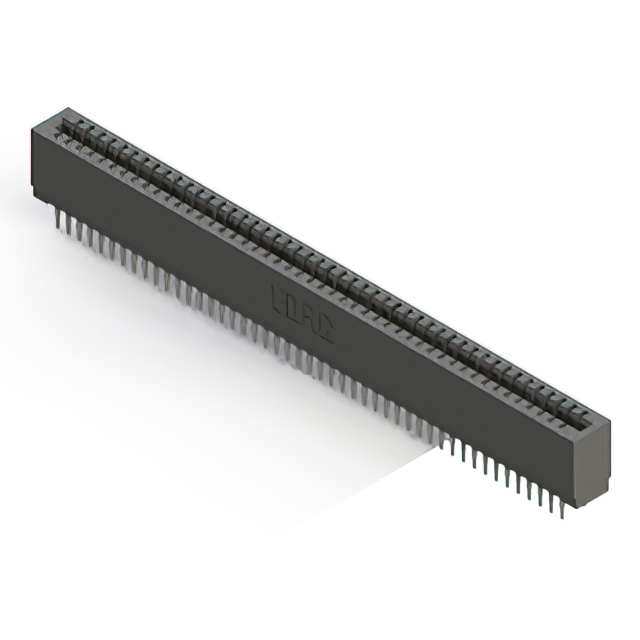

CONN EDGE DUAL FMALE 94POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Number of Positions	Number of Positions/Bay/Row	Color	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Pitch	Pitch	Contact Finish	Contact Type	Read Out	Gender
EDAC Inc. 725-094-520-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	2	Press-Fit	94	47	Black	Non Specified - Dual Edge	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Gold	Cantilever	Dual	Female
EDAC Inc. 725-094-525-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	2	Press-Fit	94	47	Black	Non Specified - Dual Edge	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Gold	Cantilever	Dual	Female
EDAC Inc. 725-094-560-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	2	Press-Fit	94	47	Black	Non Specified - Dual Edge	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Gold	Cantilever Make Before Break	Dual	Female
EDAC Inc. 725-094-540-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	2	Press-Fit Wire Wrap	94	47	Black	Non Specified - Dual Edge	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Gold	Cantilever	Dual	Female
