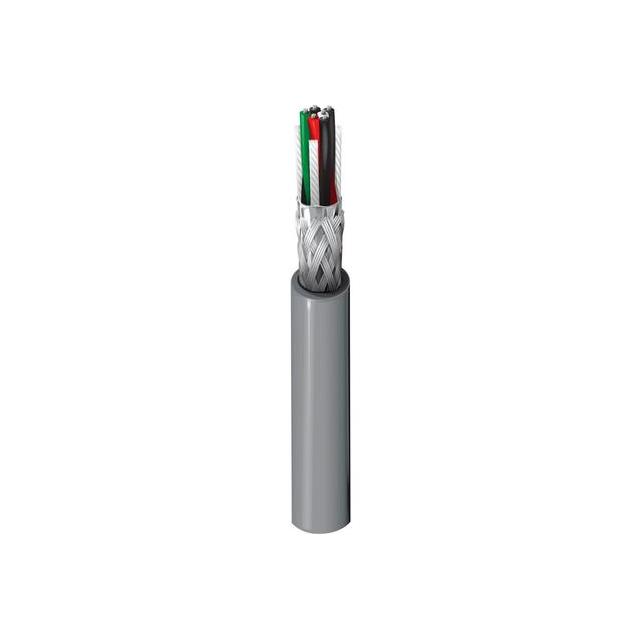

8133 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 6COND 28AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Usage | Number of Conductors | Length | Length | Features | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Wire Gauge | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 0.035 in | 0.889 mm | 7 | 36 AWG | Copper Tinned | Computer | 6 | 304.8 m | 1000 ft | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 6.73 mm | 0.265 in | Foam Polyethylene (FPE) | UL Style 2919 | 80 °C | -30 ░C | Multi-Pair | 28 AWG | Braid Foil |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 0.035 in | 0.889 mm | 7 | 36 AWG | Copper Tinned | Computer | 6 | 152.4 m | 500 ft | Drain Wire | Chrome | Poly-Vinyl Chloride (PVC) | 6.73 mm | 0.265 in | Foam Polyethylene (FPE) | UL Style 2919 | 80 °C | -30 ░C | Multi-Pair | 28 AWG | Braid Foil |
