YZ-R Series

Catalog

SWITCH SNAP ACT SPST-NO 15A 125V

Part	Features	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Operating Position	Operating Position	Mechanical Life	Operating Force	Actuator Type	Circuit	Overtravel [custom]	Overtravel [custom]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Termination Style	Electrical Life
Honeywell Sensing and Productivity Solutions YZ-RX62-D584	Reset Function Reset Plunger on Bottom	15 A 500 mA	125 VDC	Chassis Mount	125 V	0.625 in	15.9 mm	20000000 Cycles	113 gf	Round (Pin Plunger)	SPST-NO	0.005 "	0.13 mm	Off-On	-55 C	85 °C	0.3 mm	0.012 in	Quick Connect - 0.250" (6.3mm)
Honeywell Sensing and Productivity Solutions YZ-RS		15 A		Chassis Mount				20000000 Cycles		Overtravel Plunger	SPST-NO			Off-Mom	-55 C	85 °C			Solder Lug	100000 Cycles
Honeywell Sensing and Productivity Solutions YZ-RM49-A2		15 A		Chassis Mount				20000000 Cycles		Round (Pin Plunger)	SPST-NO			Off-Mom	-55 C	85 °C			Screw Terminal	100000 Cycles

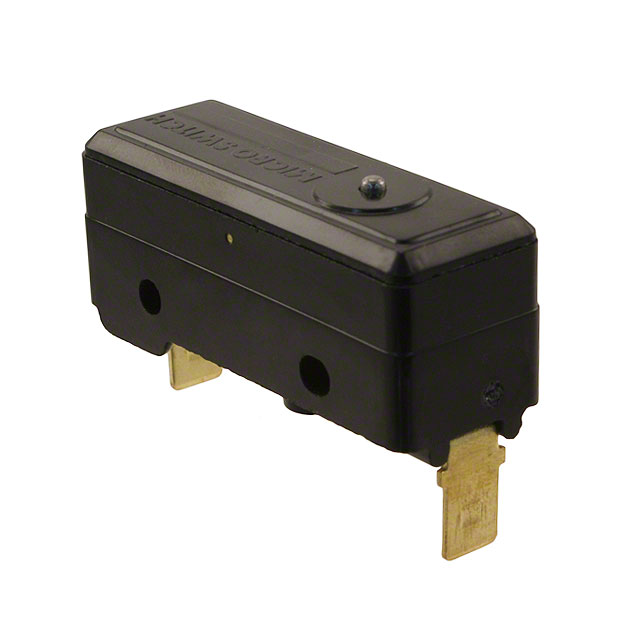

Honeywell Sensing and Productivity Solutions YZ-RX58-D5	Reset Function Reset Plunger on Bottom	15 A 500 mA	125 VDC	Chassis Mount	125 V	0.625 in	15.9 mm	20000000 Cycles	113 gf	Round (Pin Plunger)	SPST-NO	0.005 "	0.13 mm	Off-On	-55 C	85 °C	0.3 mm	0.012 in	Quick Connect - 0.250" (6.3mm)
