LRA22H2B Series
Manufacturer: ZF Electronics
Beta
⌘K

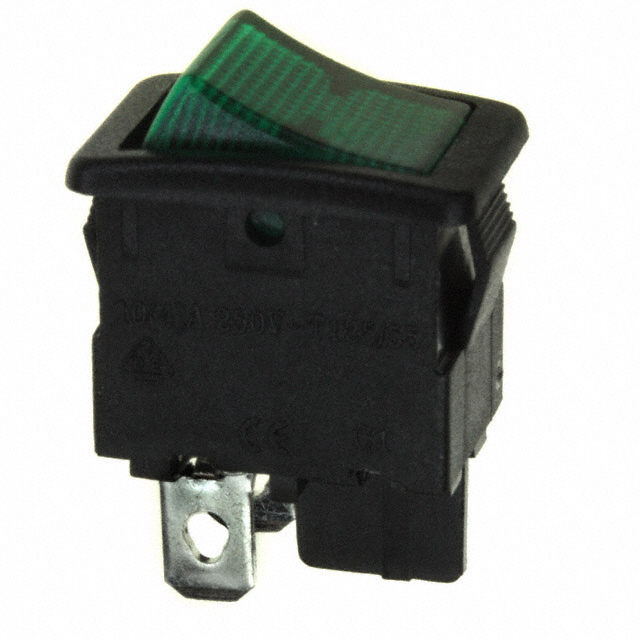

SWITCH ROCKER SPST 10A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Circuit | Switch Function | Termination Style | Mounting Type | Color - Actuator/Cap | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Approval Agency | Current Rating (Amps) | Illumination Voltage (Nominal) | Illumination Type, Color | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 100000 Cycles | 6000 Cycles | 125 V | SPST | On-Off | Quick Connect | Panel Mount Snap-In | Black | No Marking | 12.9 mm | 19.1 mm | Concave (Curved) | CE cULus VDE | 10 A | ||||
ZF Electronics | 100000 Cycles | 6000 Cycles | 125 V | SPST | On-Off | Quick Connect | Panel Mount Snap-In | Red | No Marking | 12.9 mm | 19.1 mm | Concave (Curved) - Illuminated | CE cULus VDE | 10 A | 125 VAC | Neon Red | ||
 ZF Electronics | 100000 Cycles | 6000 Cycles | 125 V | SPST | On-Off | Quick Connect | Panel Mount Snap-In | Green | No Marking | 12.9 mm | 19.1 mm | Concave (Curved) - Illuminated | CE cULus VDE | 10 A | 125 VAC | Neon | Green |
