PTC03 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Mounting Type	Number of Rows	Termination	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Style	Connector Type	Contact Type	Shrouding	Contact Material	Contact Shape	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]

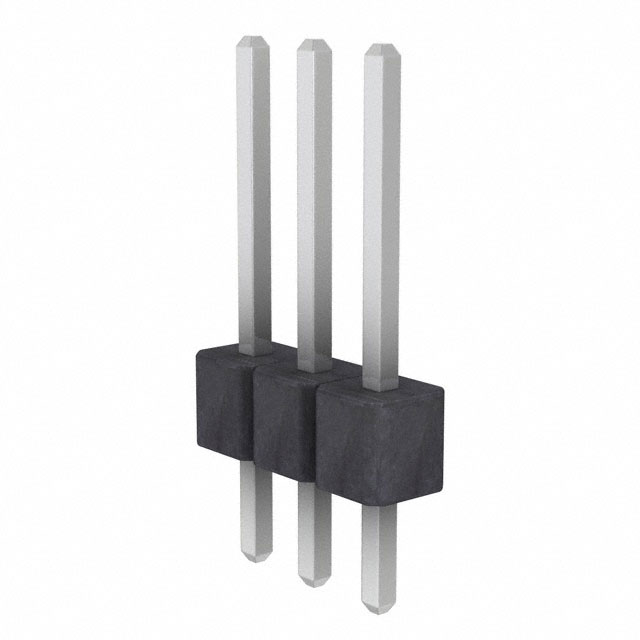

Sullins Connector Solutions PTC03SFAN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole	1	Solder	13.67 mm	0.538 in	100 çin	2.54 çm	8.08 mm	0.318 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	3.05 mm	0.12 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm

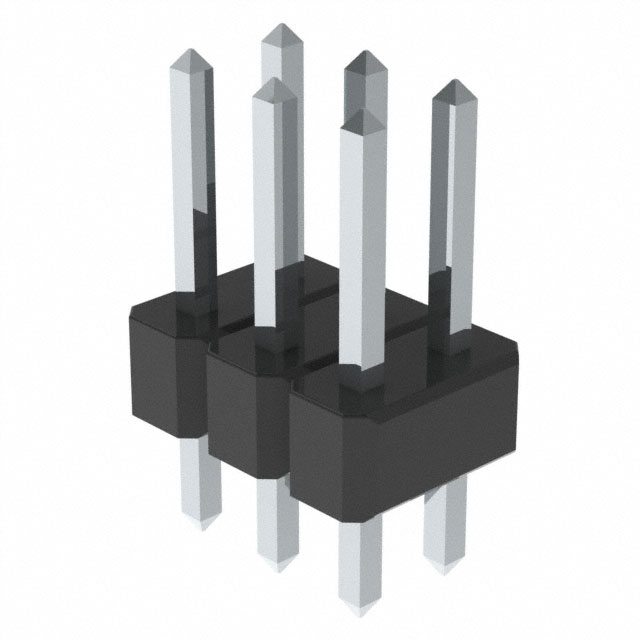

Sullins Connector Solutions PTC03DAAN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole		Solder	11.43 mm	0.45 in	100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	3.05 mm	0.12 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm	2	0.1 in	2.54 mm	6

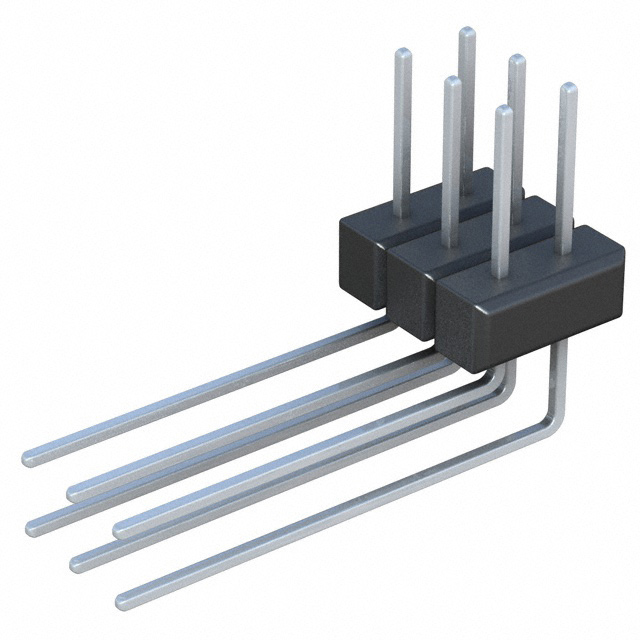

Sullins Connector Solutions PTC03DBEN	UL94 V-0	2.54 µm	100 µin	Black	Right Angle Through Hole		Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	13.21 mm	0.52 in	Polyester Thermoplastic			0.1 "	2.54 mm	2	0.1 in	2.54 mm	6	6.1 mm	0.24 in

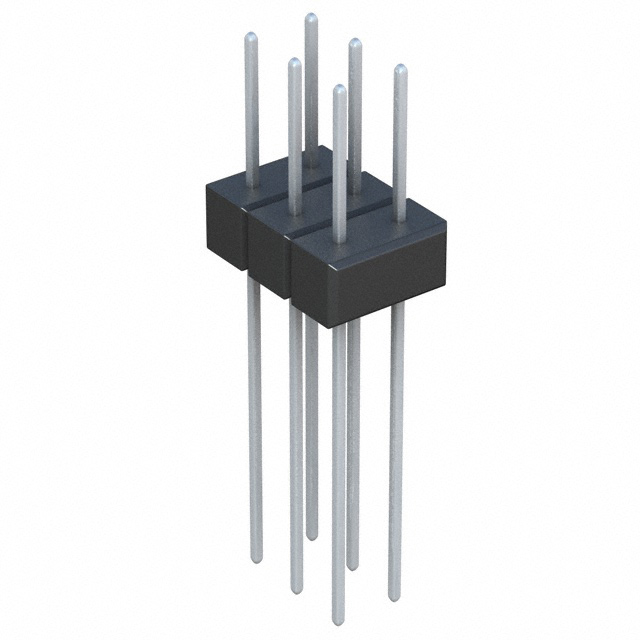

Sullins Connector Solutions PTC03DAEN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole		Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	13.21 mm	0.52 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm	2	0.1 in	2.54 mm	6			0.85 in	21.59 mm

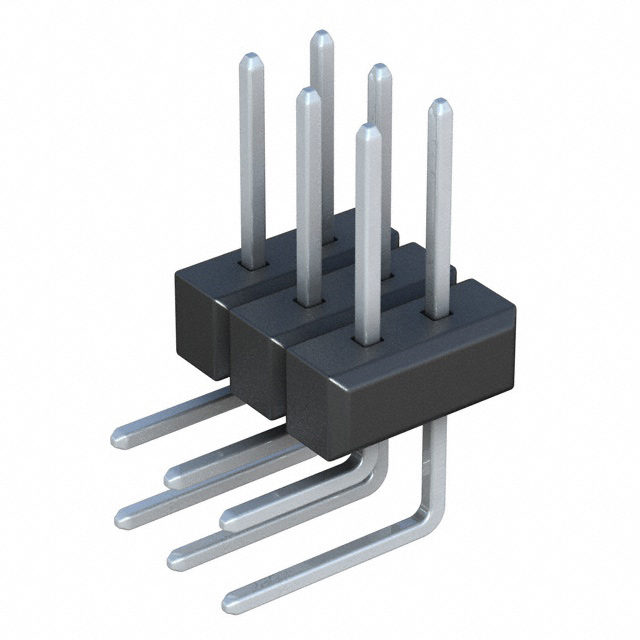

Sullins Connector Solutions PTC03DBAN	UL94 V-0	2.54 µm	100 µin	Black	Right Angle Through Hole		Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	3.05 mm	0.12 in	Polyester Thermoplastic			0.1 "	2.54 mm	2	0.1 in	2.54 mm	6	6.1 mm	0.24 in

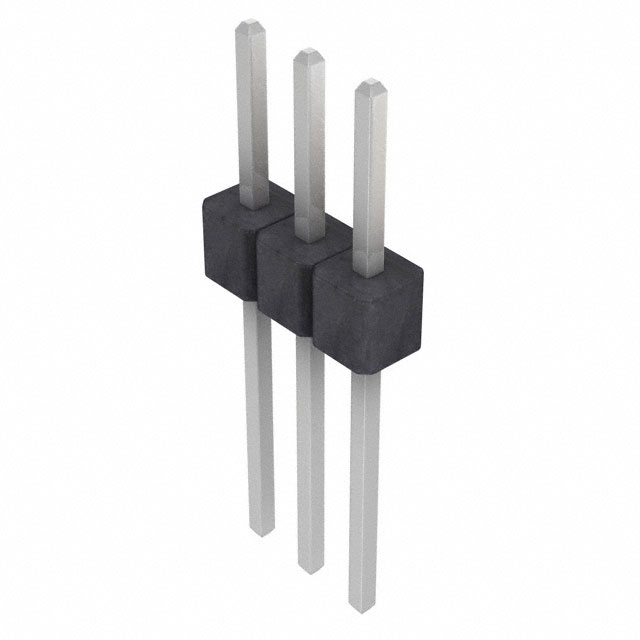

Sullins Connector Solutions PTC03SADN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole	1	Solder	19.05 mm	0.75 in	100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	10.67 mm	0.42 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm

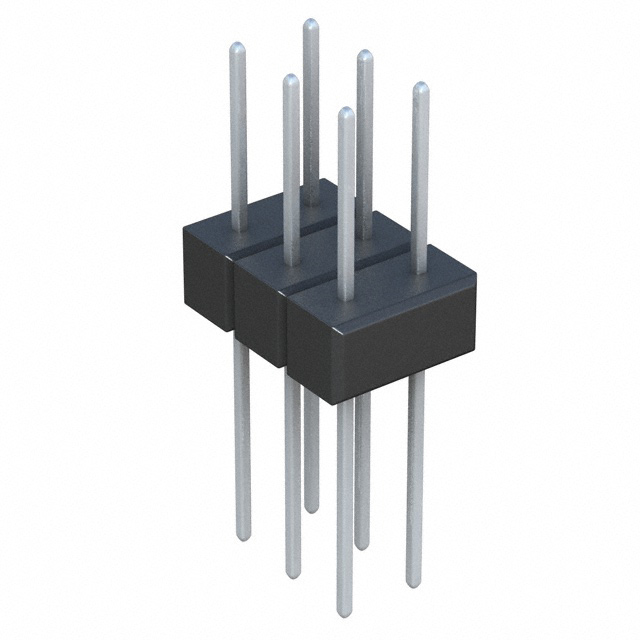

Sullins Connector Solutions PTC03DACN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole		Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	8.13 mm	0.32 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm	2	0.1 in	2.54 mm	6			0.65 in	16.51 mm

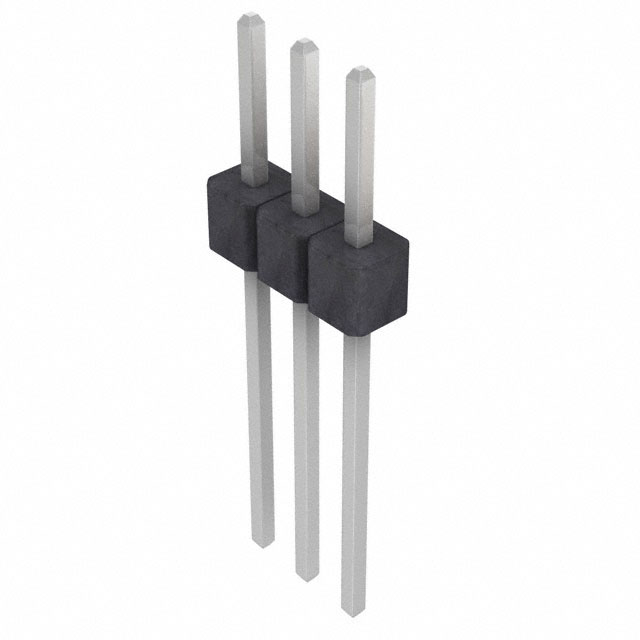

Sullins Connector Solutions PTC03SAEN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole	1	Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	13.21 mm	0.52 in	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm							0.85 in	21.59 mm

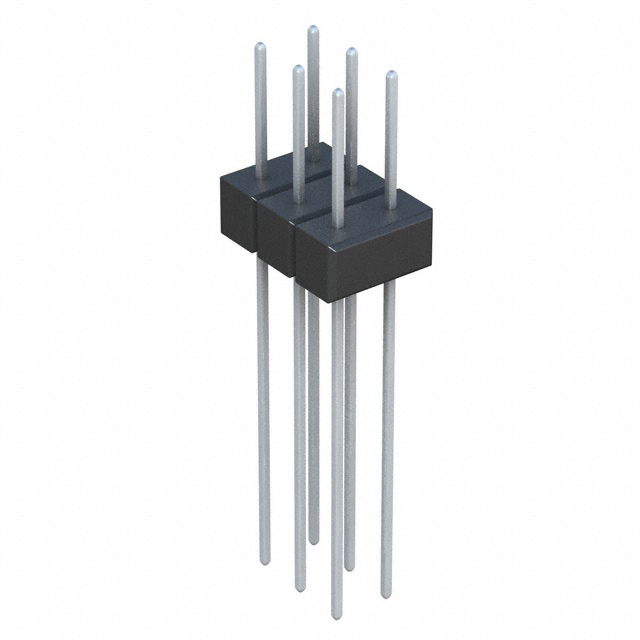

Sullins Connector Solutions PTC03DAFN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole		Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square			Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm	2	0.1 in	2.54 mm	6			0.95 in	24.13 mm	15.75 mm	0.62 "

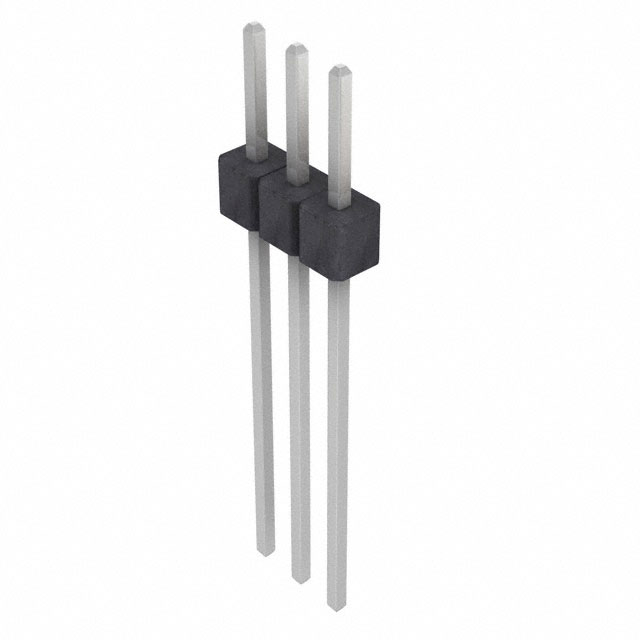

Sullins Connector Solutions PTC03SAGN	UL94 V-0	2.54 µm	100 µin	Black	Through Hole	1	Solder			100 çin	2.54 çm	5.84 mm	0.23 in	3 A	All	Push-Pull	Tin	Board to Board Cable	Header	Male Pin	Unshrouded	Copper Alloy	Square	18.29 mm	0.72 "	Polyester Thermoplastic	0.1 in	2.54 mm	0.1 "	2.54 mm							1.05 in	26.67 mm
