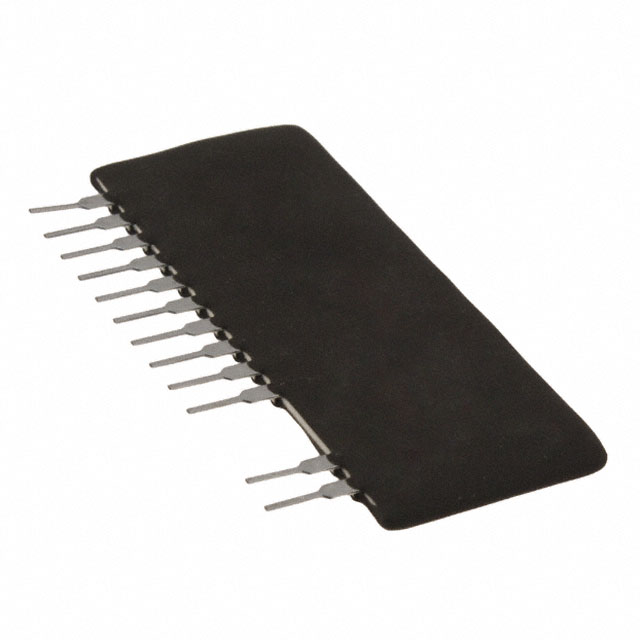

VLA504 Series
Manufacturer: Powerex Inc.
Beta
⌘K
IC GATE DRVR HI/LOW SIDE MODULE
| Part | Rise / Fall Time (Typ) | Driven Configuration | Package / Case | Channel Type | Number of Drivers | Input Type | Gate Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Powerex Inc. | 300 ns | High-Side or Low-Side | 14-SIP Module 12 Leads | Single | 1 | Non-Inverting | IGBT | 15 V | 14 V | Through Hole | 3 A | 3 A | -20 °C | 60 °C | Module |
