76160 Series
Manufacturer: Molex
Beta
⌘K

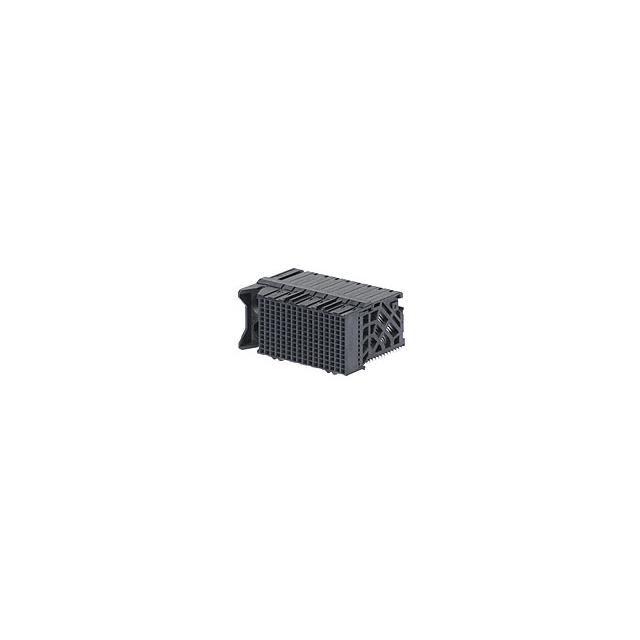

IMPACT 100 OHM 4 PAIR RIGHT-ANGLE DAUGHTERCARD RECEPTACLE, LEFT GUIDED, 6 COLUMNS, 72 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.39MM, LEAD-FREE
| Part | Number of Positions Loaded | Number of Columns | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Contact Finish | Pitch | Pitch | Number of Rows | Termination | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Layout, Typical | Features | Number of Positions | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | All | 6 | Impact Guide Left | 30 Áin | 0.76 Ám | 30 VDC | Gold | 1.35 mm | 0.053 in | 12 | Press-Fit | UL94 V-0 | -55 C | 85 °C | Board Edge Right Angle Through Hole | 24 Differential Pairs | Board Guide | 72 | Black | Receptacle Female Sockets |
 Molex |
