842-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K

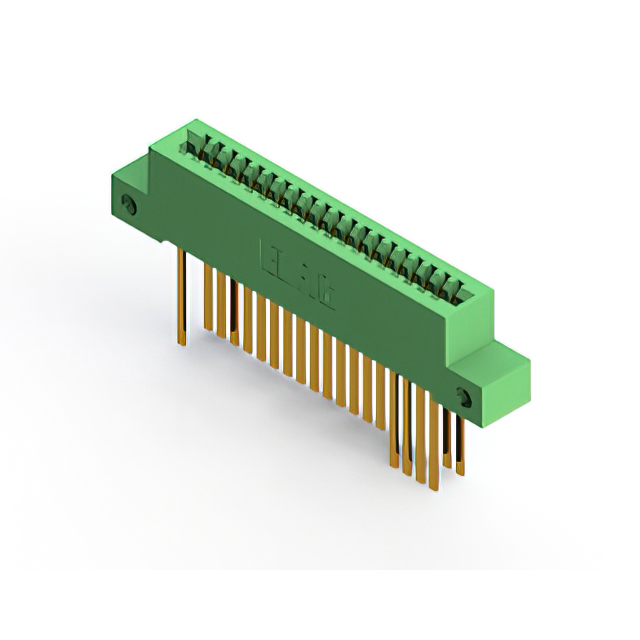

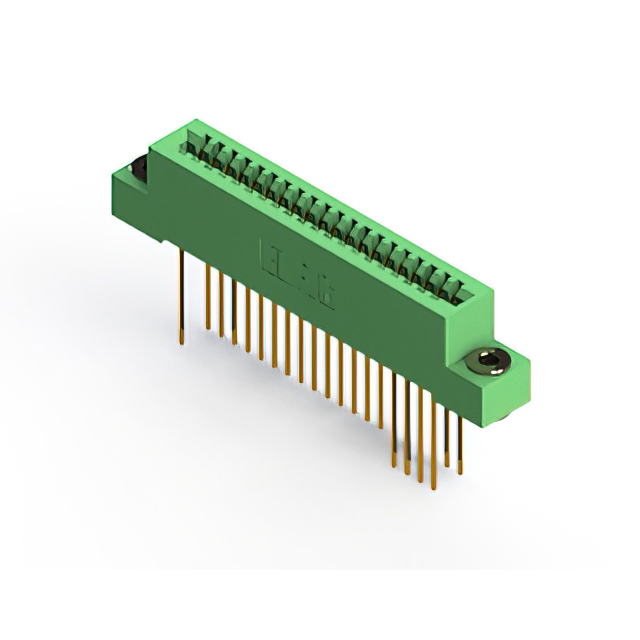

CONN EDGE DUAL FMALE 40POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Number of Positions/Bay/Row | Color | Contact Material | Number of Positions | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Features | Contact Finish | Card Type | Card Thickness [Max] | Card Thickness [Min] | Read Out | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 2 | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | 20 Bay/Row | Green | Copper Alloy | 40 | Solder | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Card Extender | Gold | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 2 | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Female | 20 Bay/Row | Green | Copper Alloy | 40 | Solder | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Female | Green | Copper Alloy | 40 | Solder | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 40 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Green | Copper Alloy | 40 | Wire Wrap | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 40 | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 2 | 125 °C | -40 C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Female | 20 Bay/Row | Green | Copper Alloy | 40 | Wire Wrap | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Female | Green | Copper Alloy | 40 | Solder | Right Angle Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 40 | 1 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | Female | Green | Copper Alloy | 40 | Solder | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 40 | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 2 | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Female | 20 Bay/Row | Green | Copper Alloy | 40 | Wire Wrap | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Cantilever | 2 | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Female | 20 Bay/Row | Green | Copper Alloy | 40 | Solder | Right Angle Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -40 C | Female | Green | Copper Alloy | 40 | Wire Wrap | Through Hole | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Gold | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 1 | 40 | 1 |
