MAX9650 Series

High-Current VCOM Drive Op Amps for TFT LCDs

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

High-Current VCOM Drive Op Amps for TFT LCDs

Part	Current - Supply	Applications	Package / Case	Package / Case	Slew Rate	Current - Output / Channel	Number of Circuits	Mounting Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Output Type	Supplier Device Package	-3db Bandwidth	Supplied Contents	Secondary Attributes	Primary Attributes	Function	Contents	Utilized IC / Part	Type
Analog Devices Inc./Maxim Integrated MAX9650AUA+T	3.7 mA	TFT-LCD Panels: VCOM Driver	0.118 in 3 mm	8-MSOP 8-TSSOP Exposed Pad	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	8-uMAX-EP 8-uSOP-EP	35 MHz

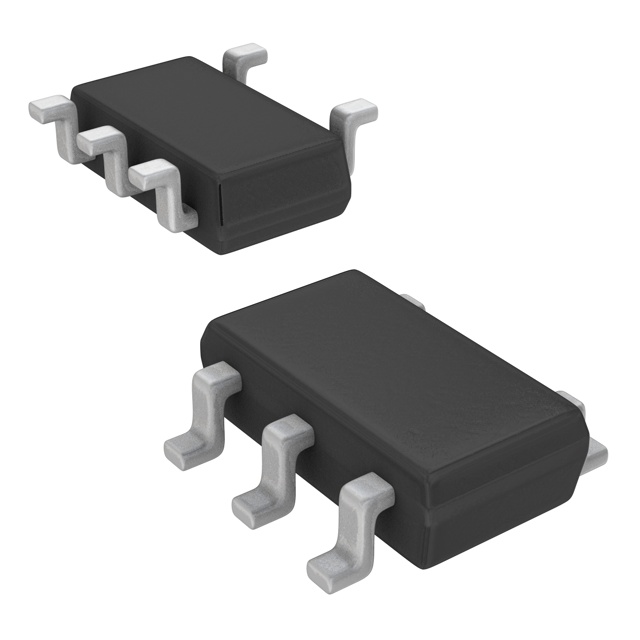

Analog Devices Inc./Maxim Integrated MAX9650AZK+	3.7 mA	TFT-LCD Panels: VCOM Driver		SOT-23-5 Thin TSOT-23-5	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	TSOT-23-5	35 MHz
Analog Devices Inc./Maxim Integrated MAX9650EVKIT+														Board(s)	Short-Circuit Thermal Protection	VCOM Driver for TFT-LCD panels	Amplifier Single	Board(s)	MAX9650	Video
Analog Devices Inc./Maxim Integrated MAX9650ATA+	3.7 mA	TFT-LCD Panels: VCOM Driver		8-WDFN Exposed Pad	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	8-TDFN (3x3)	35 MHz
Analog Devices Inc./Maxim Integrated MAX9650ATA+T	3.7 mA	TFT-LCD Panels: VCOM Driver		8-WDFN Exposed Pad	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	8-TDFN (3x3)	35 MHz
Analog Devices Inc./Maxim Integrated MAX9650AZK/V+T	3.7 mA	TFT-LCD Panels: VCOM Driver		SOT-23-5 Thin TSOT-23-5	40 V/çs	1.3 A	1	Surface Mount	3 V 6 V	10 V 20 V		TSOT-23-5	35 MHz
Analog Devices Inc./Maxim Integrated MAX9650AZK+T	3.7 mA	TFT-LCD Panels: VCOM Driver		SOT-23-5 Thin TSOT-23-5	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	TSOT-23-5	35 MHz
Analog Devices Inc./Maxim Integrated MAX9650AUA+	3.7 mA	TFT-LCD Panels: VCOM Driver	0.118 in 3 mm	8-MSOP 8-TSSOP Exposed Pad	40 V/çs	1.3 A	1	Surface Mount	-4.5 V 9 V	10 V 20 V	Rail-to-Rail	8-uMAX-EP 8-uSOP-EP	35 MHz

Catalog

High-Current VCOM Drive Op Amps for TFT LCDs

Description

The MAX9650/MAX9651 are single- and dual-channel VCOM amplifiers with rail-to-rail inputs and outputs. The MAX9650/MAX9651 can drive up to 1300mA of peak current per channel and operate up to 20V.The MAX9650/MAX9651 are designed to source and sink a high current quickly to hold the VCOM voltage stable in large TFT-LCD panels.The MAX9650/MAX9651 feature 40V/µs slew rate and 35MHz bandwidth to quickly settle outputs for 120Hz frame rate and full HD television.The MAX9650/MAX9651 feature output short-circuit protection and thermal shutdown. These devices are available in exposed pad packages for excellent heat dissipation.ApplicationsDisplays: LCDFlat-Panel and Plasma TVsInstrument Control Voltage SourcesTFT-LCD Display Panels
