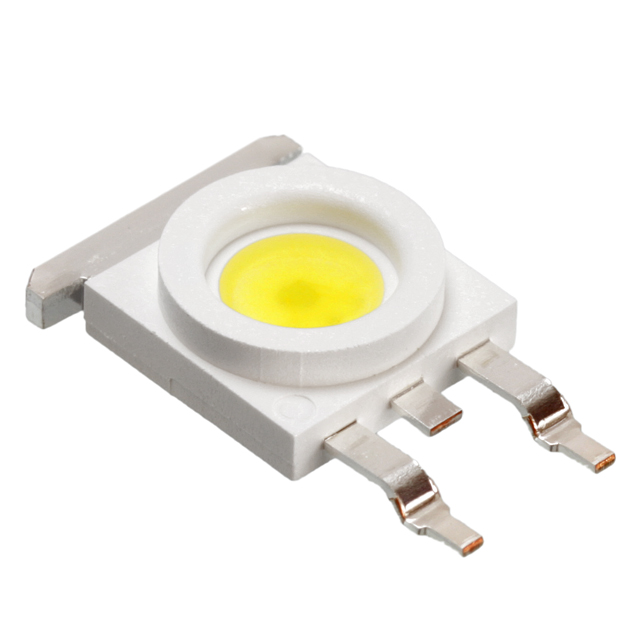

ASMT-MW09 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED MOONSTONE WHITE 7000K TO252
| Part | Thermal Resistance of Package | CCT (K) | Viewing Angle | Height - Seated (Max) [Max] | Height - Seated (Max) | Voltage - Forward (Vf) (Typ) | Package / Case | Lumens/Watt @ Current - Test | Color | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current - Test | Flux @ 85°C, Current - Test | Flux @ 25°C, Current - Test | Flux @ 25°C, Current - Test [Min] | Flux @ 25°C, Current - Test [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 10 °C/W | 7000 K | 120 ° | 0.134 in | 3.4 mm | 3.6 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 87 lm/W | Cool White | 350 mA | 8.5 mm | 0.335 " | 0.335 in | 8.5 mm | Surface Mount | 350 mA | 90 lm | |||
Broadcom Limited | 10 °C/W | 7000 K | 120 ° | 0.134 in | 3.4 mm | 3.6 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 79 lm/W | Cool White | 350 mA | 8.5 mm | 0.335 " | 0.335 in | 8.5 mm | Surface Mount | 350 mA | 81 lm | 99 lm | 73 lm | 124 lm |
