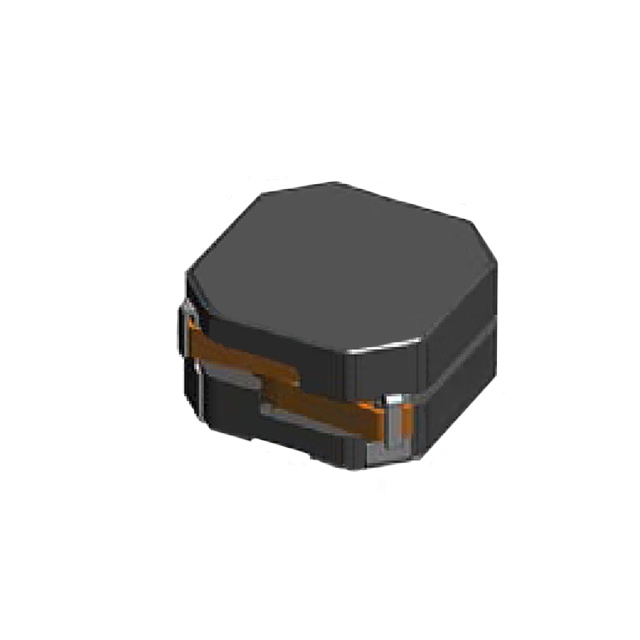

1217AS Series

Catalog

FIXED IND 22UH 2.4A 93.6MOHM SMD

Part	Inductance Frequency - Test	Material - Core	Package / Case	DC Resistance (DCR) [Max]	Mounting Type	Current - Saturation (Isat)	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Type	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Murata Electronics 1217AS-H-220M=P3	100 kHz	Ferrite	Nonstandard	93.6 mOhm	Surface Mount	2.9 A	Shielded	4.5 mm	0.177 in	2.4 A	22 µH	8 mm	0.315 in	8 mm	0.315 in	20 %	Drum Core Wirewound
Murata Electronics 1217AS-H-1R5N=P3	100 kHz	Ferrite	Nonstandard	7.6 mOhm	Surface Mount	11.2 A	Shielded	4.5 mm	0.177 in	9.4 A	1.5 µH	8 mm	0.315 in	8 mm	0.315 in	30 %	Drum Core Wirewound
Murata Electronics 1217AS-H-6R8N=P3	100 kHz	Ferrite	Nonstandard	27.6 mOhm	Surface Mount	5.2 A	Shielded	4.5 mm	0.177 in	4.8 A	6.8 µH	8 mm	0.315 in	8 mm	0.315 in	30 %	Drum Core Wirewound	85 °C	-40 C
Murata Electronics 1217AS-H-8R2M=P3	100 kHz	Ferrite	Nonstandard	33.6 mOhm	Surface Mount	4.8 A	Shielded	4.5 mm	0.177 in	4.5 A	8.2 µH	8 mm	0.315 in	8 mm	0.315 in	20 %	Drum Core Wirewound	85 °C	-40 C
Murata Electronics 1217AS-H-3R3N=P3	100 kHz	Ferrite	Nonstandard		Surface Mount	7.7 A	Shielded	4.5 mm	0.177 in	6.8 A	3.3 µH	8 mm	0.315 in	8 mm	0.315 in	30 %	Drum Core Wirewound
Murata Electronics 1217AS-H-330M=P3	100 kHz	Ferrite	Nonstandard	132 mOhm	Surface Mount	2.3 A	Shielded	4.5 mm	0.177 in	2.2 A	33 µH	8 mm	0.315 in	8 mm	0.315 in	20 %	Drum Core Wirewound
Murata Electronics 1217AS-H-4R7N=P3	100 kHz	Ferrite	Nonstandard	18 mOhm	Surface Mount	6.7 A	Shielded	4.5 mm	0.177 in	6.3 A	4.7 ÁH	8 mm	0.315 in	8 mm	0.315 in	30 %	Drum Core Wirewound
Murata Electronics 1217AS-H-100M=P3	100 kHz	Ferrite	Nonstandard	39.6 mOhm	Surface Mount	4.3 A	Shielded	4.5 mm	0.177 in	3.9 A	10 µH	8 mm	0.315 in	8 mm	0.315 in	20 %	Drum Core Wirewound
Murata Electronics 1217AS-H-2R2N=P3	100 kHz	Ferrite	Nonstandard		Surface Mount	9.3 A	Shielded	4.5 mm	0.177 in	8.7 A	2.2 µH	8 mm	0.315 in	8 mm	0.315 in	30 %	Drum Core Wirewound			9.9 mOhm
Murata Electronics 1217AS-H-470M=P3	100 kHz	Ferrite	Nonstandard		Surface Mount	2.1 A	Shielded	4.5 mm	0.177 in	1.8 A	47 µH	8 mm	0.315 in	8 mm	0.315 in	20 %	Drum Core Wirewound			204 mOhm
