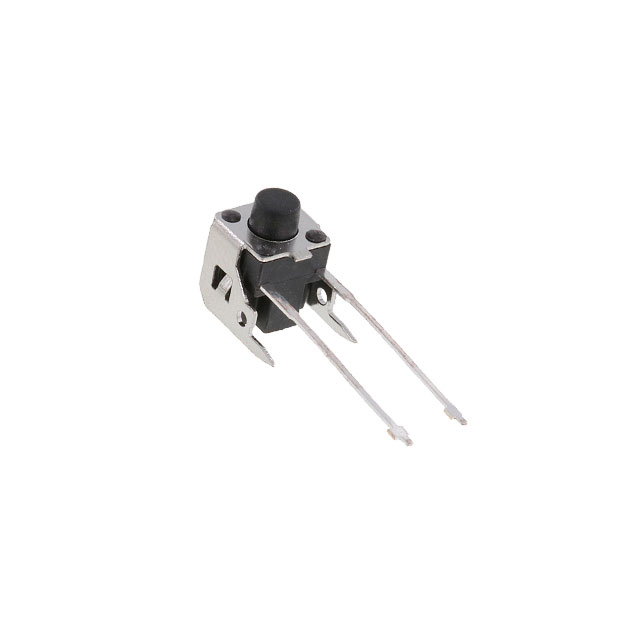

TL58X Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Actuator Material | Switch Travel | Outline [x] | Outline [y] | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Termination Style | Operating Force | Switch Function | Mounting Type | Contact Rating @ Voltage | Actuator Length, Right Angle [x] | Circuit | Actuator Orientation | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.25 mm | 7.4 mm | 6.65 mm | -20 ░C | 70 °C | Non-Illuminated | PC Pin | 160 gf | Off-Mom | Right Angle Through Hole | 0.05 A 12 VDC | 4.75 mm | SPST-NO | Side Actuated | Standard |
 E-Switch | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.25 mm | 7.4 mm | 6.65 mm | -20 ░C | 70 °C | Non-Illuminated | PC Pin | 100 gf | Off-Mom | Right Angle Through Hole | 0.05 A 12 VDC | 4.75 mm | SPST-NO | Side Actuated | Standard |
