T 3637 Series

Catalog

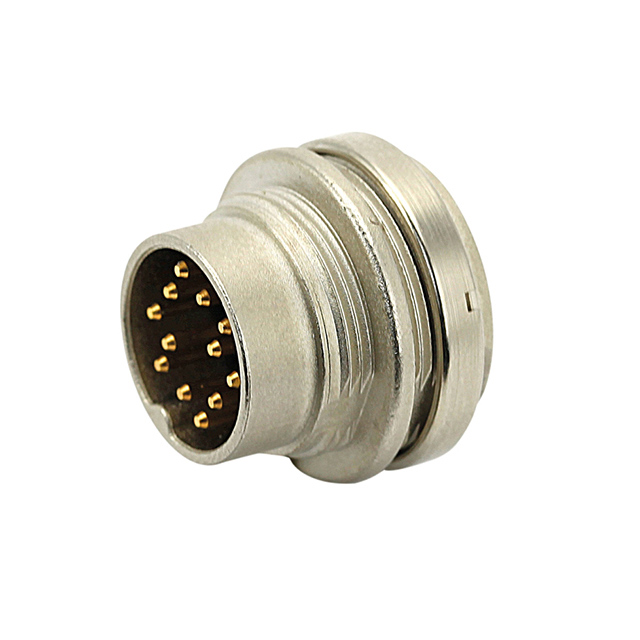

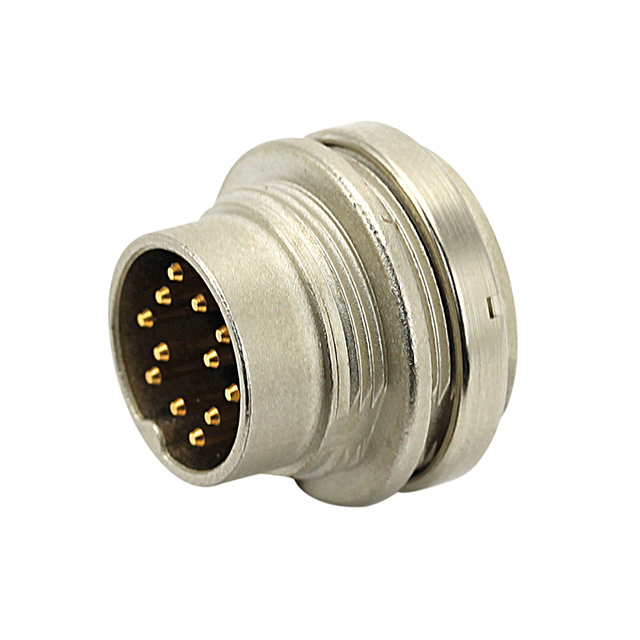

CONN RCPT MALE 12P GOLD SLDR CUP

Part	Contact Finish - Mating	Current Rating (Amps)	Orientation	Color	Shell Size - Insert	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Fastening Type	Shell Material	Number of Positions	Shell Finish	Connector Type	Shielding	Primary Material	Mounting Feature
Amphenol Tuchel Industrial T 3637 000	Gold	3 A	Keyed	Silver	M16-12	60 VDC	Panel Mount	-40 C	100 °C	IP40	Threaded	Die Cast	12	Nickel	Receptacle Male Pins	Shielded	Metal
Amphenol Tuchel Industrial T 3637 001	Silver	3 A	Keyed	Silver	M16-12	60 VDC	Panel Mount	-40 C	100 °C	IP40	Threaded	Die Cast	12	Nickel	Receptacle Male Pins	Shielded	Metal

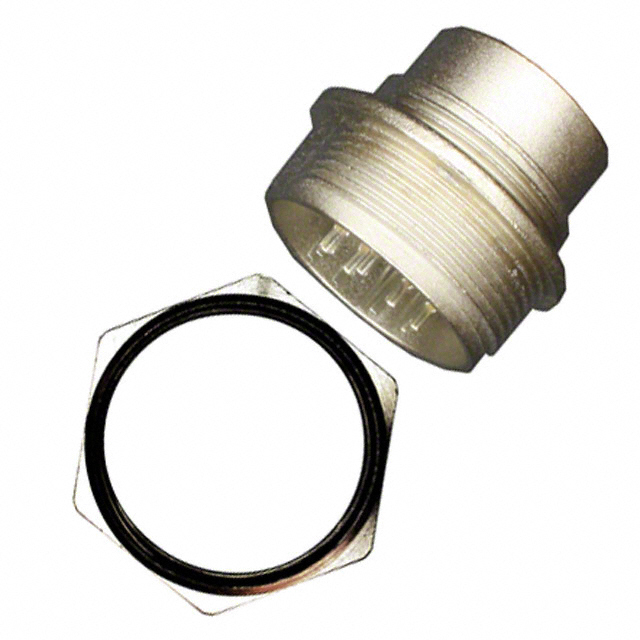

Amphenol Tuchel Industrial T 3637 009	Silver	3 A	Keyed	Silver	M16-12	60 VDC	Panel Mount	-40 C	100 °C	IP40	Threaded	Die Cast	12	Nickel	Receptacle Male Pins	Shielded	Metal	Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T 3637 100	Gold	3 A	Keyed	Silver	M16-12	60 VDC	Panel Mount	-40 C	100 °C	IP40	Threaded	Die Cast	12	Nickel	Receptacle Male Pins	Shielded	Metal
