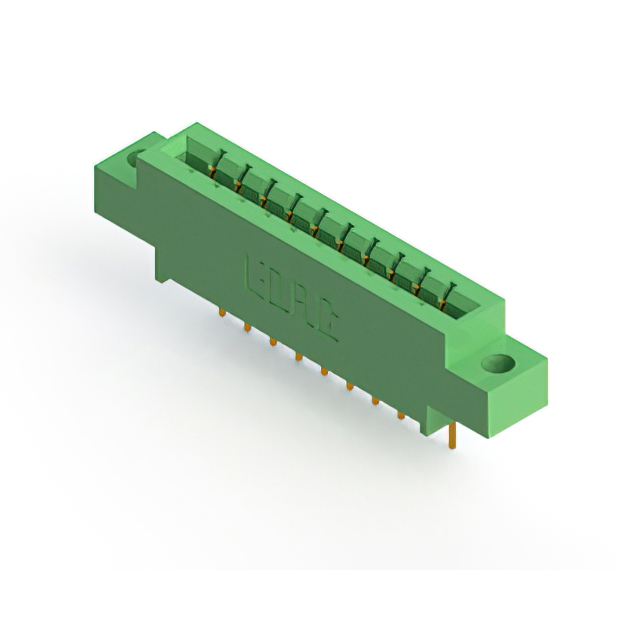

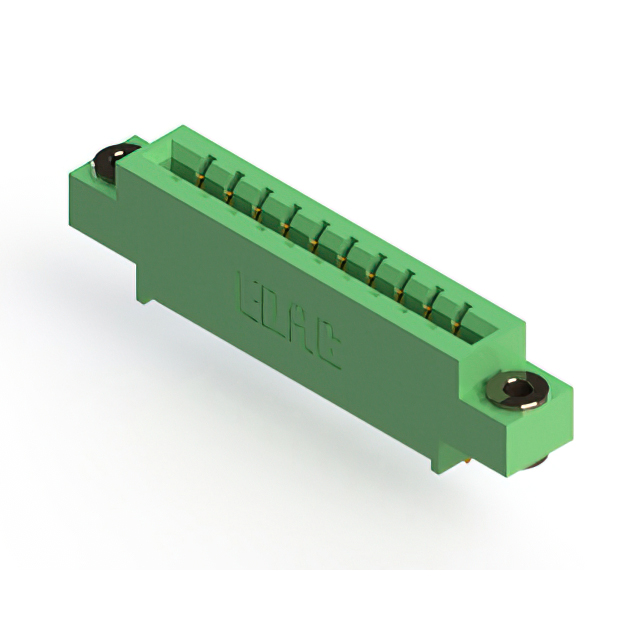

333-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 10POS 0.156
| Part | Material - Insulation | Termination Rows | Color | Flange Feature | Pitch | Pitch | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Read Out | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Number of Positions/Bay/Row | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | Flush Mount M3 Threaded Insert Top Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | Floating Bobbin Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Green | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | Gold | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Single | Non Specified - Single Edge | Female | -40 C | 105 ░C | 10 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 10 | Right Angle Through Hole |
