M4473 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

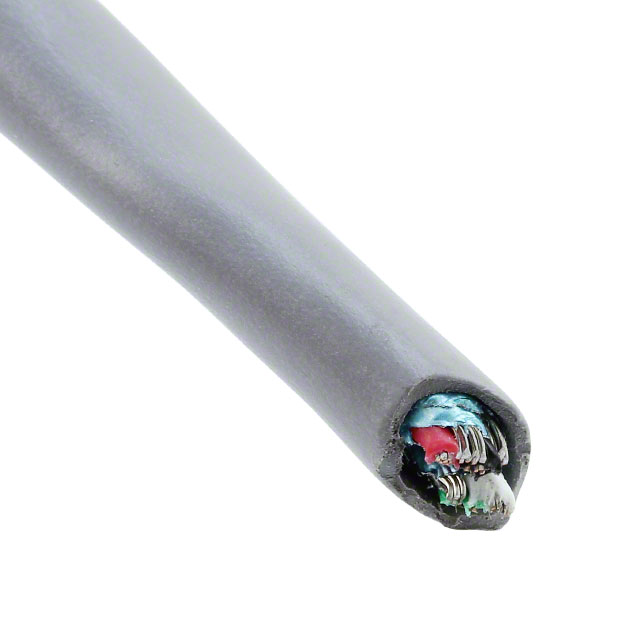

MULTI-PAIR 4CON 22AWG SLATE 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Number of Conductors | Features | Jacket (Insulation) Material | Jacket Color | Conductor Material | Wire Gauge | Cable Type | Conductor Insulation | Shield Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.15 in | 3.81 mm | 100 ft | 30.5 m | 4 | Drain Wire | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | 22 AWG | Multi-Pair | Polypropylene (PP) | Foil | 300 VDC | 30 AWG | 7 | 0.019 " | 0.483 mm | ||
ALPHA WIRE | Aluminum | 100 % | 0.15 in | 3.81 mm | 4 | Drain Wire | Poly-Vinyl Chloride (PVC) | Slate | Copper Tinned | 22 AWG | Multi-Pair | Polypropylene (PP) | Foil | 300 VDC | 30 AWG | 7 | 0.019 " | 0.483 mm | 304.8 m | 1000 ft |
