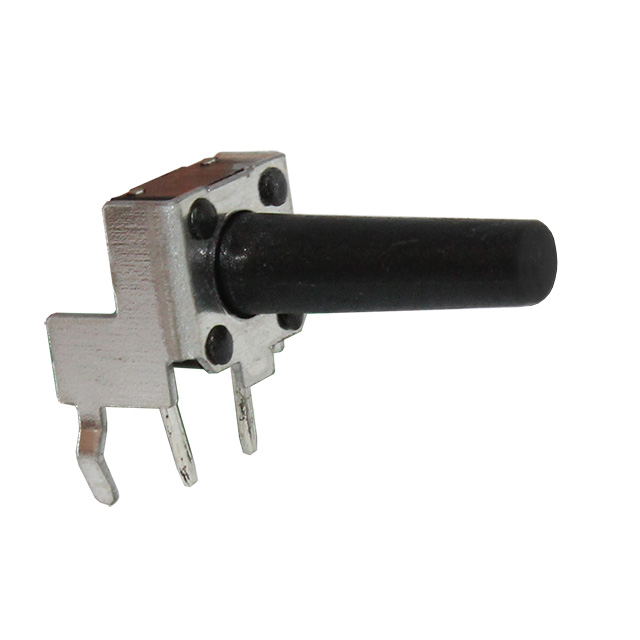

CT1102V10 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Actuator Orientation | Mounting Type | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Switch Function | Outline [y] | Outline [x] | Contact Rating @ Voltage | Illumination | Actuator Length, Right Angle | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | Side Actuated | Right Angle Through Hole | Plunger for Cap | PC Pin | 85 °C | -40 C | 160 gf | Off-Mom | 6.3 mm | 7.5 mm | 0.05 A 50 VDC | Non-Illuminated | 10.35 mm | SPST-NO |
CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | Side Actuated | Right Angle Through Hole | Plunger for Cap | PC Pin | 85 °C | -40 C | 100 gf | Off-Mom | 6.3 mm | 7.5 mm | 0.05 A 50 VDC | Non-Illuminated | 10.35 mm | SPST-NO |
CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.25 mm | Side Actuated | Right Angle Through Hole | Plunger for Cap | PC Pin | 85 °C | -40 C | 260 gf | Off-Mom | 6.3 mm | 7.5 mm | 0.05 A 50 VDC | Non-Illuminated | 10.35 mm | SPST-NO |
