G3T13A Series

Catalog

TOGGLE SWITCH, ON-OFF-ON, SPDT, NON ILLUMINATED, 100 MA, PANEL MOUNT

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Bushing Thread	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Mounting Type	Illumination	Circuit	Actuator Type	Switch Function
NKK Switches G3T13AH-R	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	85 °C	-30 ░C	Process Sealed	Unthreaded	28 V	0.4 VA	Gull Wing	Right Angle Surface Mount	Non-Illuminated	SPDT	Standard Round	On-Off-On

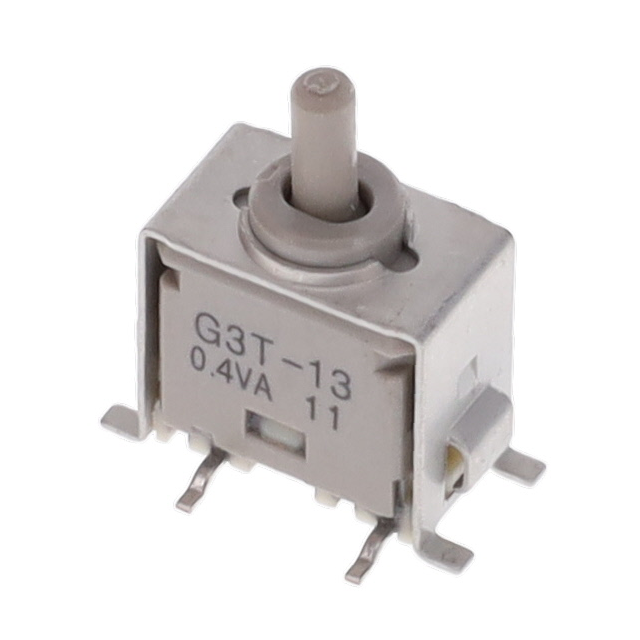

NKK Switches G3T13AB	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	85 °C	-30 ░C	Process Sealed	Unthreaded	28 V	0.4 VA	Gull Wing	Surface Mount	Non-Illuminated	SPDT	Standard Round	On-Off-On

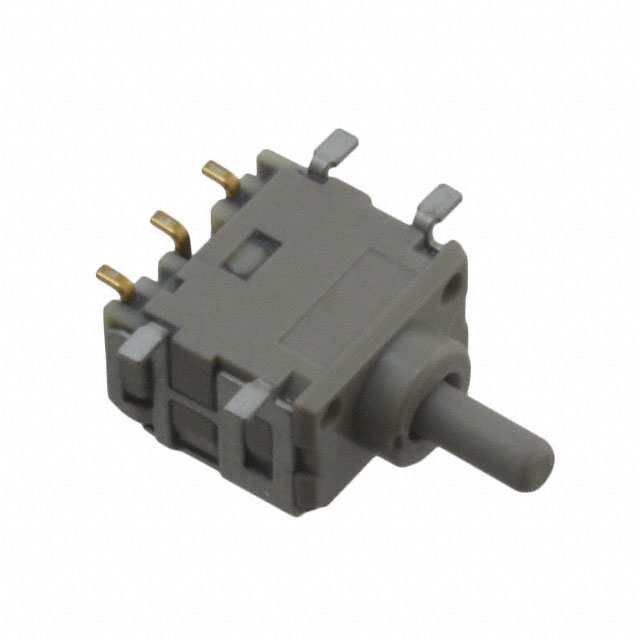

NKK Switches G3T13AH	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	85 °C	-30 ░C	Process Sealed	Unthreaded	28 V	0.4 VA	Gull Wing	Right Angle Surface Mount	Non-Illuminated	SPDT	Standard Round	On-Off-On
NKK Switches G3T13AB-S	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	3.81 mm	85 °C	-30 ░C		Unthreaded	28 V	0.4 VA	Gull Wing	Surface Mount	Non-Illuminated	SPDT	Standard Round	On-Off-On
