ADS4226 Series

Catalog

ADS4226 ADC EVALUATION BOARD 160MSPS TIGAR IDE

Part	Input Range	Data Interface	Supplied Contents	Utilized IC / Part	Number of Bits	Number of A/D Converters	Sampling Rate (Per Second)	Number of Inputs	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Mounting Type	Configuration	Architecture	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Reference Type	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Features	Supplier Device Package	Ratio - S/H:ADC

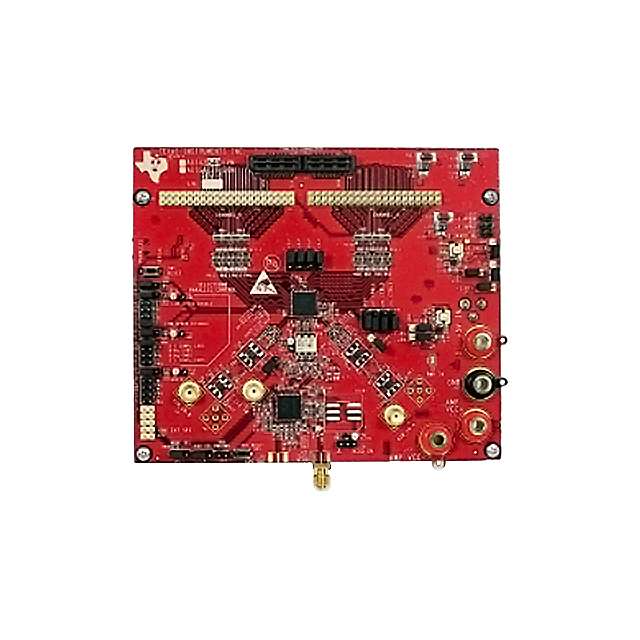

Texas Instruments ADS4226EVM	2 Vpp	CMOS LVDS Parallel Serial	Board(s)	ADS4226	12 bits	2	160M
Texas Instruments ADS4226IRGC25		LVDS - Parallel Parallel			12 bits	2	160M	2	1.9 V	1.7 V	Surface Mount	S/H-ADC	Pipelined	64-VFQFN Exposed Pad	85 °C	-40 °C	Differential	Internal	1.7 V	1.9 V	Simultaneous Sampling	64-VQFN (9x9)	1:1
Texas Instruments ADS4226IRGCT		LVDS - Parallel Parallel			12 bits	2	160M	2	1.9 V	1.7 V	Surface Mount	S/H-ADC	Pipelined	64-VFQFN Exposed Pad	85 °C	-40 °C	Differential	Internal	1.7 V	1.9 V	Simultaneous Sampling	64-VQFN (9x9)	1:1
Texas Instruments ADS4226IRGCR		LVDS - Parallel Parallel			12 bits	2	160M	2	1.9 V	1.7 V	Surface Mount	S/H-ADC	Pipelined	64-VFQFN Exposed Pad	85 °C	-40 °C	Differential	Internal	1.7 V	1.9 V	Simultaneous Sampling	64-VQFN (9x9)	1:1
