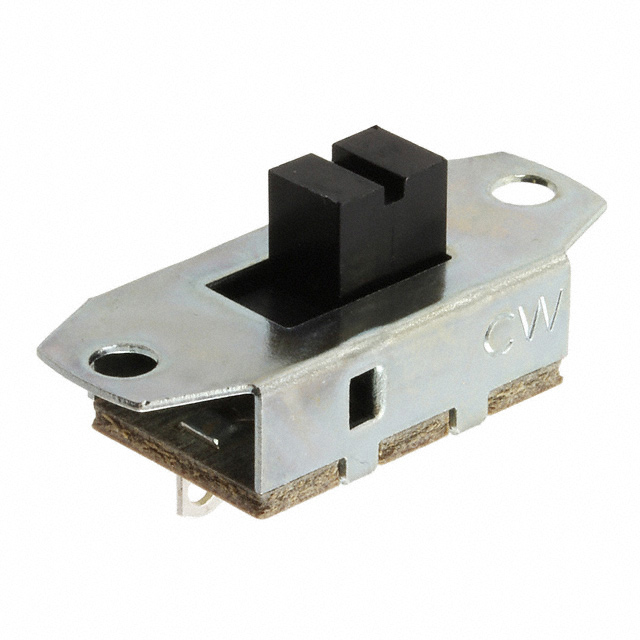

G-632-0 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPDT 6A 125V
| Part | Mechanical Life | Actuator Material | Electrical Life | Switch Travel | Circuit | Switch Function | Contact Material | Actuator Length [x] | Voltage Rating - DC | Current Rating (Amps) | Mounting Type | Contact Timing | Contact Finish | Actuator Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 4.01 mm | SPDT | On-Mom | Copper | 5.59 mm | 125 VDC | 6 A 500 mA | Panel Mount | Not Specified | Silver | Screwdriver Slot | 125 V | -10 °C | 104 °C | Solder Lug |
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 4.01 mm | SPDT | On-Mom | Copper | 8.74 mm | 125 VDC | 6 A 500 mA | Panel Mount | Not Specified | Silver | Standard | 125 V | -10 °C | 104 °C | Solder Lug |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 4.01 mm | SPDT | On-Mom | Copper | 8.74 mm | 125 VDC | 6 A 500 mA | Panel Mount | Not Specified | Silver | Standard | 125 V | -10 °C | 104 °C | Wire Wrap |
