7923A Series
Manufacturer: Belden Inc.
Beta
⌘K

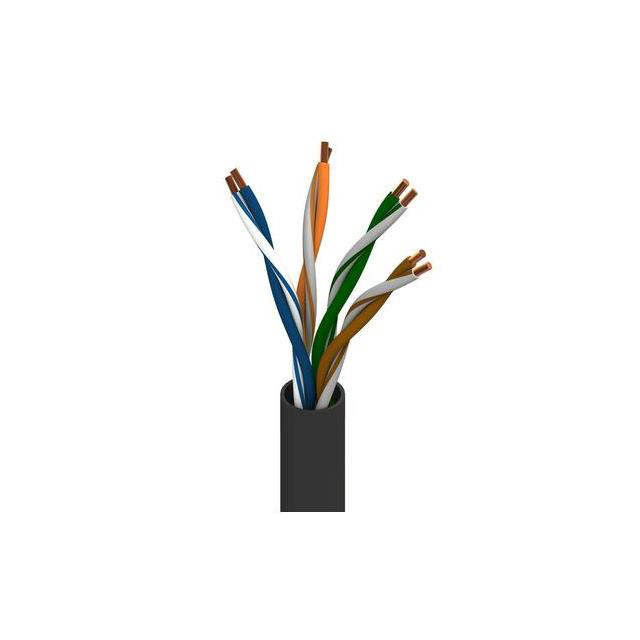

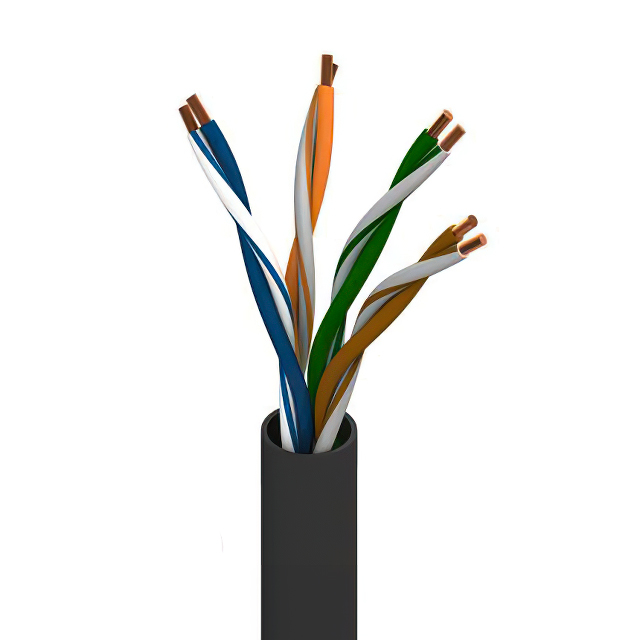

CABLE CAT5E 8CON 24AWG BLU
| Part | Jacket Color | Ratings | Cable Type | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Material | Usage | Number of Conductors | Length | Length | Jacket (Insulation) Material | Voltage | Conductor Insulation | Conductor Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Blue | UL Style CMR | Multi-Pair Cat5e | Solid | 0.23 in | 5.84 mm | -40 C | 75 ░C | 24 AWG | Copper Bare | Industrial Network | 8 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant |
Belden Inc. | Red | UL Style CMR | Multi-Pair Cat5e | Solid | 0.23 in | 5.84 mm | -40 C | 75 ░C | 24 AWG | Copper Bare | Industrial Network | 8 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant |
 Belden Inc. | Black | UL Style CMR | Multi-Pair Cat5e | Solid | 0.23 in | 5.84 mm | -40 C | 75 ░C | 24 AWG | Copper Bare | Industrial Network | 8 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant |
Belden Inc. | Teal | UL Style CMR | Multi-Pair Cat5e | Solid | 0.23 in | 5.84 mm | -40 C | 75 ░C | 24 AWG | Copper Bare | Industrial Network | 8 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 300 VDC | Polyolefin | PO | Oil Resistant Rip Cord UV Resistant |
