SZSMF4L43CAT3G Series

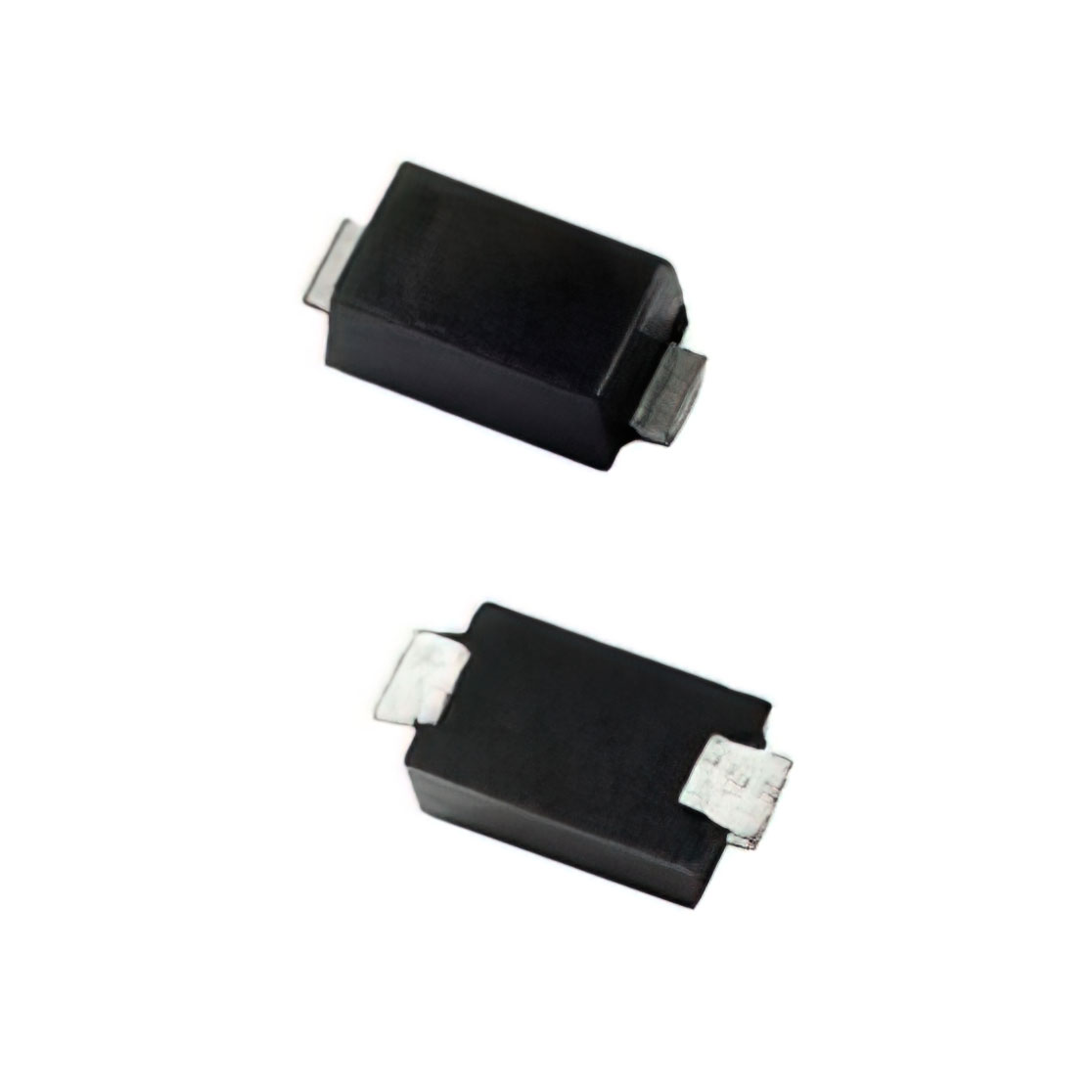

Zen TVS 400W 7.0V UNI SOD-123FL TR13
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Zen TVS 400W 7.0V UNI SOD-123FL TR13
| Part | Grade | Package / Case | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Power Line Protection | Voltage - Breakdown (Min) [Min] | Qualification | Voltage - Clamping (Max) @ Ipp [Max] | Voltage - Reverse Standoff (Typ) | Operating Temperature [Min] | Operating Temperature [Max] | Power - Peak Pulse | Mounting Type | Type | Bidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 18.6 A | 14.4 V | AEC-Q101 | 21.5 V | 13 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
 Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 33.3 A | 7.78 V | AEC-Q101 | 7 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 12 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 17.2 A | 15.6 V | AEC-Q101 | 23.2 V | 14 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 3.9 A | 71.1 V | AEC-Q101 | 103 V | 64 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 6.9 A | 40 V | AEC-Q101 | 58.1 V | 36 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 5.2 A | 53.3 V | AEC-Q101 | 77.4 V | 48 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 15.4 A | AEC-Q101 | 26 V | 16 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | ||||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 4.1 A | 66.7 V | AEC-Q101 | 96.8 V | 60 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 16.4 A | 16.7 V | AEC-Q101 | 24.4 V | 15 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 | |||
Littelfuse/Commercial Vehicle Products | Automotive | SOD-123F | SOD-123F | 18.6 A | 14.4 V | AEC-Q101 | 21.5 V | 13 V | -55 °C | 175 ░C | 400 W | Surface Mount | Zener | 1 |
Key Features
• Zener transient overvoltage suppressors
• Working peak reverse voltage range 5 V to 78 V for unidirectional and 10 V to 78 V for bi-directional
• Peak power: 400 watts @ 1 ms
• Planar chip design with low leakage current performance
• Response time is typically < 1 ns
• ESD rating of class 3 (>16 kV) per human body model
• IEC-61000-4-2 ESD 30 kV(Air), 30 kV (Contact)
• Lead orientation in tape: cathode lead to sprocket holes
• Lead-free and RoHS compliant
• SZ prefix for automotive and other applications requiring control change requirements; AEC−Q101 qualified and PPAP capable
Description
AI
The SZSMF4L series is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in automotive electronics applications.
