IL-G-14P Series
Manufacturer: JAE Electronics
Beta
⌘K

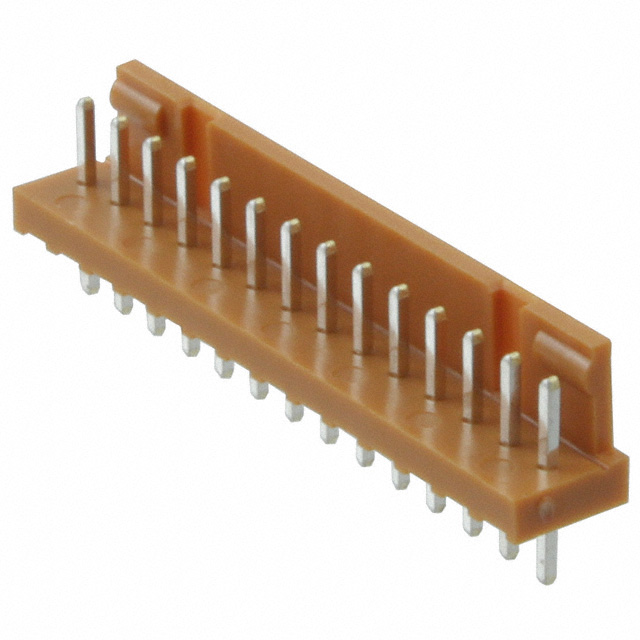

CONN HEADER VERT 14POS 2.5MM
| Part | Mated Stacking Heights | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Contact Type | Contact Shape | Contact Material | Insulation Height | Insulation Height | Termination | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Material Flammability Rating | Number of Rows | Contact Length - Mating | Contact Length - Mating | Number of Positions | Fastening Type | Insulation Color | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Style | Insulation Material | Mounting Type | Current Rating (Amps) | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 10 mm | 0.138 in | 3.5 mm | Tin | Male Pin | Square | Brass | 0.28 in | 7.1 mm | Solder | 2.5 mm | 0.098 in | All | UL94 V-0 | 1 | 4 mm | 0.157 in | 14 | Friction Lock | Brown | Header | 85 °C | -40 C | Shrouded - 1 Wall | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | Through Hole | 3 A | 9.6 mm | 0.378 in |
