59S601 Series
Manufacturer: Rosenberger
Beta
⌘K

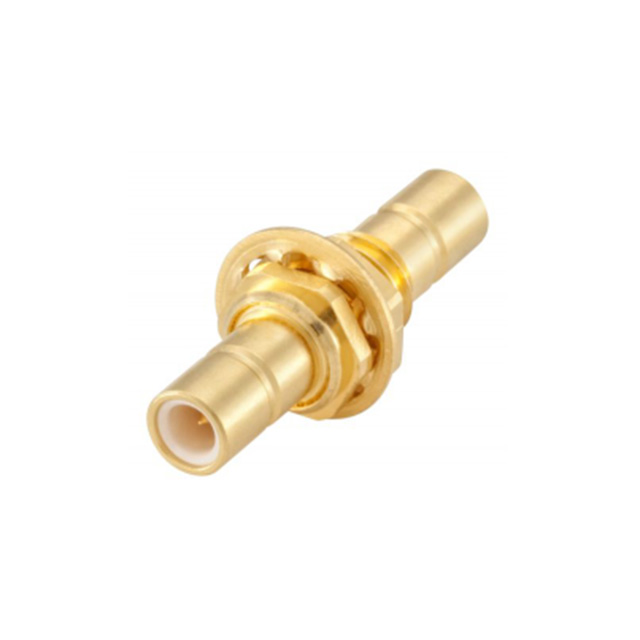

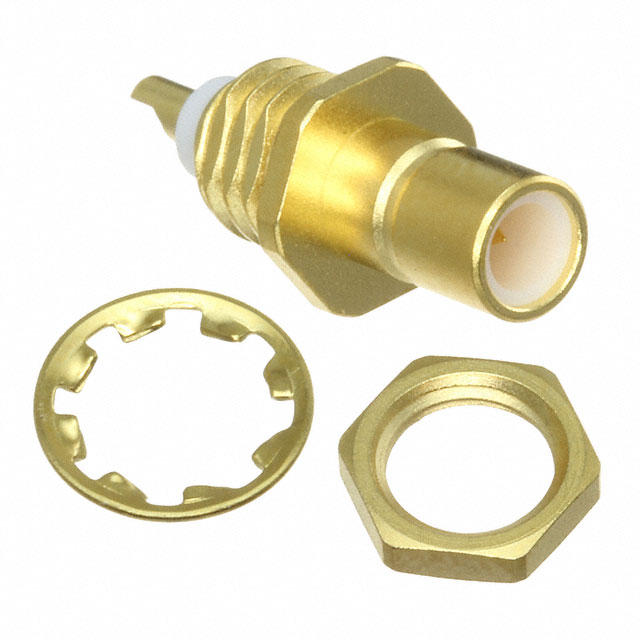

CONN SMB PLUG STR 50OHM SOLDER
| Part | Dielectric Material | Body Finish | Includes | Center Contact Plating | Mating Cycles | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Housing Color | Impedance | Features | Contact Termination | Number of Ports | Fastening Type | Frequency - Max [Max] | Connector Style | Connector Type | Mounting Feature | Shield Termination | Center Contact Material | Mounting Type | Adapter Type | Conversion Type | Center Gender | Convert To (Adapter End) | Style | Fastening Type | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | 500 | Brass | 155 C | -55 C | 250 V | Gold | 50 Ohms | Extended Insulation | Solder Cup | 1 | Snap-On | 4 GHz | SMB | Plug Male Pin | Bulkhead - Front Side Nut | Solder | Brass | Panel Mount | |||||||
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | 500 | Brass | 155 C | -55 C | 50 Ohms | Snap-On | 4 GHz | Bulkhead | Brass | Panel Mount | Plug to Plug | Same Series | Male to Male | SMB Plug Male Pin | Straight | Snap-On | SMB to SMB |
