770328 Series

Catalog

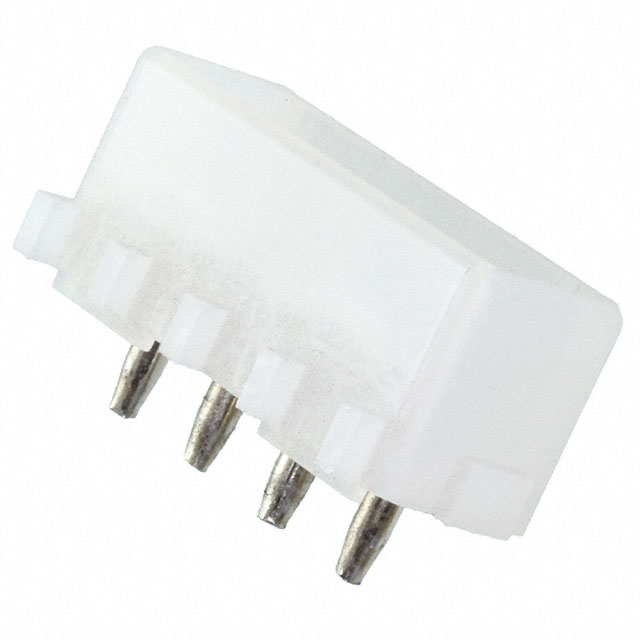

CONN HEADER VERT 4POS 5.08MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Positions	Shrouding	Material Flammability Rating	Style	Insulation Color	Insulation Material	Fastening Type	Contact Material	Connector Type	Contact Type	Contact Shape	Number of Rows	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating	Insulation Height [z]	Insulation Height	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
TE Connectivity AMP Connectors 1-770328-1	2.03 µm	80 µin	Solder	4	Shrouded - 4 Wall	UL94 V-2	Board to Cable/Wire	Natural	Nylon Polyamide (PA)	Detent Lock	Copper Alloy	Header	Male Pin	Circular	1	Through Hole	2.03 µm	80 µin	Tin-Lead	0.375 in	9.53 mm	12 Amps	All	0.2 "	5.08 mm	Tin-Lead	-55 C	105 ░C	250 VAC
TE Connectivity AMP Connectors 770328-1	2.03 µm	80 µin	Solder	4	Shrouded - 4 Wall	UL94 V-2	Board to Cable/Wire	Natural	Nylon Polyamide (PA)	Detent Lock	Copper Alloy	Header	Male Pin	Circular	1	Through Hole	2.03 µm	80 µin	Tin-Lead	0.375 in	9.53 mm	12 Amps	All	0.2 "	5.08 mm	Tin-Lead	-55 C	105 ░C	250 VAC
