AMP Circular Plastic Connectors Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CIRCULAR SHELL, CPC 2, WALL MOUNT RECEPTACLE, MULTIMATE SOCKET CONTACTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insert Material | Note | Connector Type | Fastening Type | Shielding | Number of Positions | Orientation | Material Flammability Rating | Contact Size | Mounting Feature | Shell Material | Mounting Type | Contact Type | Type | Housing Color | Shell Size - Insert | Includes | For Use With/Related Products | Features | Thread Size | Cable Opening | Cable Opening | Shell Size - Insert | Color | Cable Exit | Material | Cable Exit | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert [custom] | Accessory Type | Shell Size - Insert [custom] | Diameter - Outside [diameter] | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Circular | Thermoplastic | Contacts Not Included | Receptacle Housing | Threaded | Unshielded | 8 | Keyed | UL94 V-0 | 20 | Flange | Glass Filled Nylon 6/6 Polyamide (PA66) | Panel Mount | Crimp | For Female Sockets | Black | 11-8 | ||||||||||||||||||
 TE Connectivity AMP Connectors | UL94 V-0 | Backshell Cable Clamp | 2 Screws 7 pcs - 5 pc Cable Clamp | CPC Connectors | Clamp Screws | 1 3/8-18 UNEF | 1.125 in | 28.58 mm | 23 | Black | 180 ° | Thermoplastic | |||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Backshell Cable Clamp | 1 3/8-18 UNEF | 1.125 in | 28.58 mm | 23 | Black | 180 ° | Thermoplastic | |||||||||||||||||||||||||||||

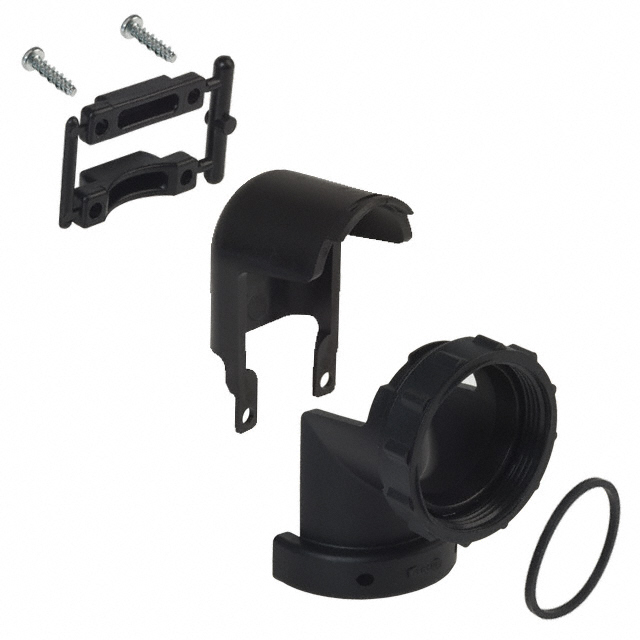

 TE Connectivity AMP Connectors | UL94 V-0 | Backshell Cable Clamp | 1 Flat Ring 2 Screws 4 pc Cable Clamp | CPC Connectors | Clamp Screws Cover | 1 3/8-18 UNEF | 0.703 in | 17.86 mm | 23 | Black | Polyamide (PA) Nylon | 90° | |||||||||||||||||||||||||

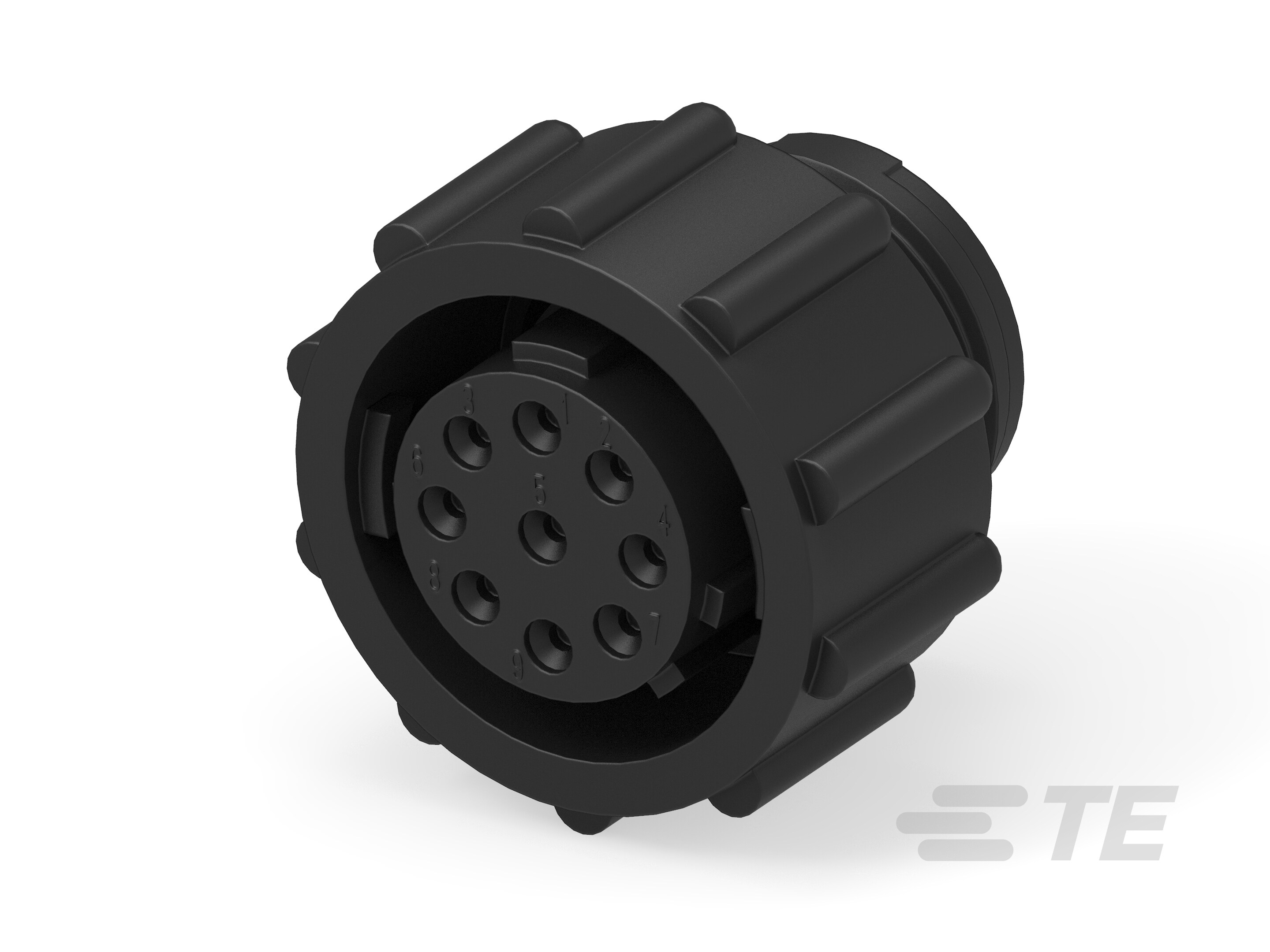

 TE Connectivity AMP Connectors | Plug Housing | Threaded | Unshielded | 9 | Keyed | UL94 V-0 | 20 | Glass Filled Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | Crimp | For Female Sockets | Black | Coupling Nut | 9 | 11 | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | Receptacle Housing | Threaded | Unshielded | 16 | Keyed | UL94 V-0 | 16 | Glass Filled Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | Crimp | For Male Pins | Black | 17 | 16 | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Plug Housing | Threaded | Unshielded | 19 | B | UL94 V-0 | 16 | Glass Filled Nylon 6/6 Polyamide (PA66) | Free Hanging (In-Line) | Crimp | For Female Sockets | Black | Coupling Nut | 19 23 | |||||||||||||||||||||||

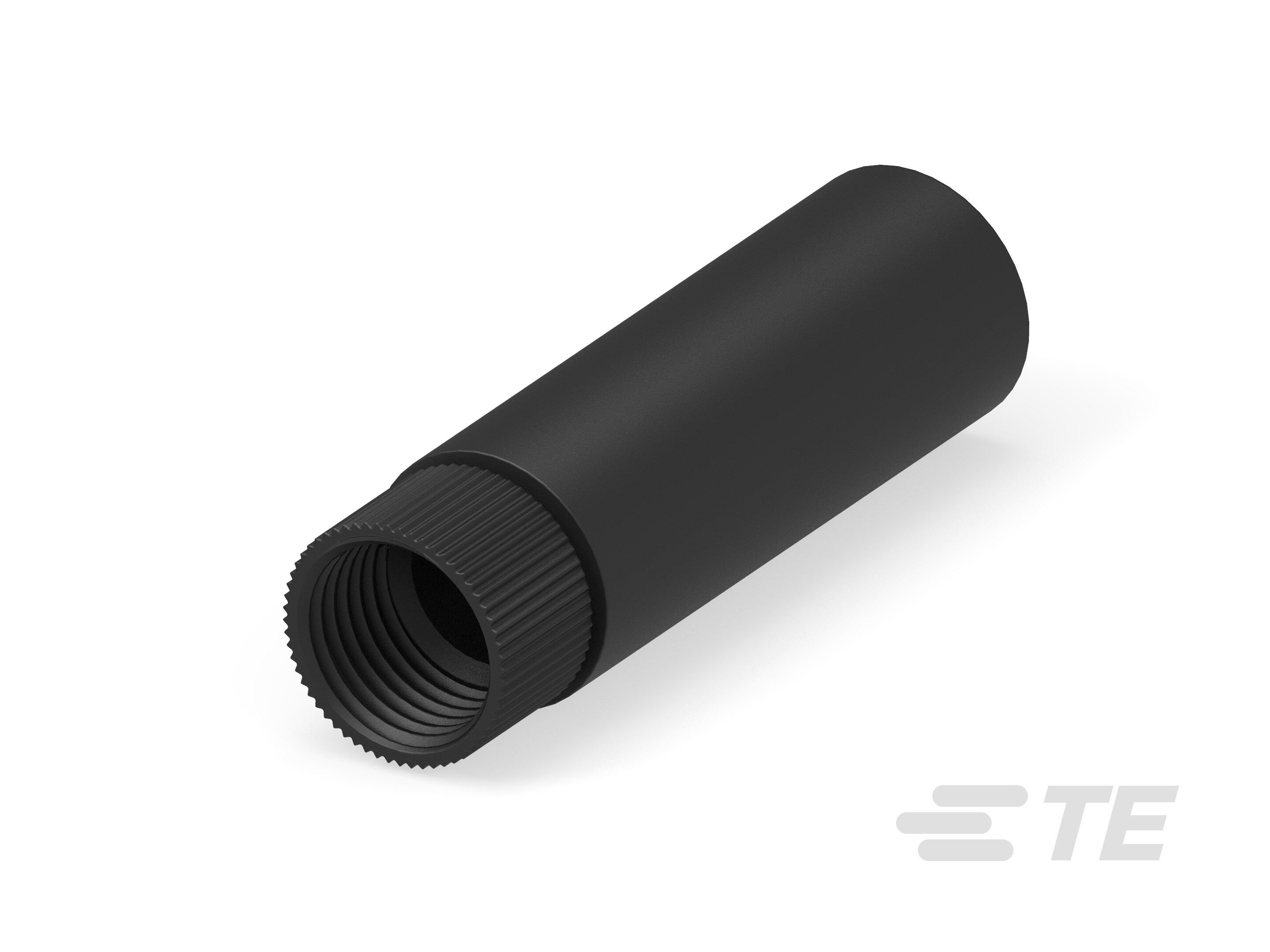

 TE Connectivity AMP Connectors | Miniature CPC | 8 | Black | Nylon | Heat Shrink Sleeve | ||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Backshell Cable Clamp | Clamp Screws | 1 3/8-18 UNEF | 1.125 in | 28.58 mm | 23 | Black | 180 ° | Thermoplastic | ||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Backshell Cable Clamp | Clamp Screws | 3/4-20 UNEF | 0.703 in | 17.86 mm | Black | 180 ° | Thermoplastic | 13 | 28.73 mm | 1.131 in |
