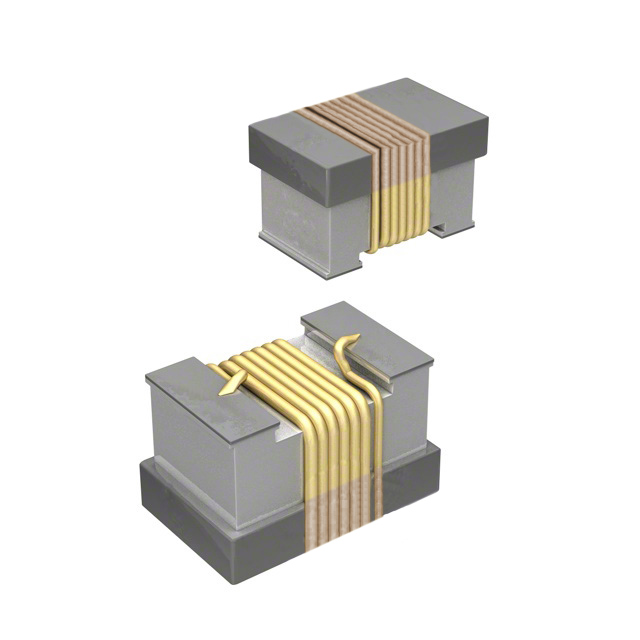

CW100505 Series

Catalog

FIXED IND 12NH 640MA 120MOHM SMD

Part	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Shielding	Frequency - Self Resonant	Package / Case	DC Resistance (DCR)	Inductance	Inductance Frequency - Test	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Current Rating (Amps)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq	Q @ Freq [custom]
Bourns Inc. CW100505-12NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	3.6 GHz	0402 (1005 Metric)	120 mOhm	12 nH	250 MHz	5 %	26	250 MHz	0.64 A	0402 (1005 Metric)	0.6 mm	0.024 in
Bourns Inc. CW100505-15NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	3.28 GHz	0402 (1005 Metric)	172 mOhm	15 nH	250 MHz	5 %	26	250 MHz	0.56 A	0402 (1005 Metric)	0.6 mm	0.024 in
Bourns Inc. CW100505-13NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded		0402 (1005 Metric)		13 nH	250 MHz	5 %					0.6 mm	0.024 in
Bourns Inc. CW100505-2N7D	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	6 GHz	0402 (1005 Metric)	120 mOhm	2.7 nH	250 MHz	0.3 nH			0.64 A	0402 (1005 Metric)	0.6 mm	0.024 in	16 250 MHz
Bourns Inc. CW100505-39NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	2.1 GHz	0402 (1005 Metric)	550 mOhm	39 nH	250 MHz	5 %	25	250 MHz	320 mA	0402 (1005 Metric)	0.6 mm	0.024 in
Bourns Inc. CW100505-1N0D	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	6 GHz	0402 (1005 Metric)	45 mOhm	1 nH	250 MHz	0.3 nH	13		1.36 A	0402 (1005 Metric)	0.6 mm	0.024 in		250 MHz
Bourns Inc. CW100505-10NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	3.9 GHz	0402 (1005 Metric)	195 mOhm	10 nH	250 MHz	5 %			480 mA	0402 (1005 Metric)	0.6 mm	0.024 in	23 250 MHz
Bourns Inc. CW100505-23NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded		0402 (1005 Metric)		23 nH	250 MHz	5 %					0.6 mm	0.024 in
Bourns Inc. CW100505-24NJ	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded		0402 (1005 Metric)		24 nH	250 MHz	5 %					0.6 mm	0.024 in
Bourns Inc. CW100505-R12J	Ceramic	0.039 "	0.55 mm	0.022 in	1 mm	-55 C	125 °C	Drum Core Wirewound	Surface Mount	Unshielded	1.1 GHz	0402 (1005 Metric)	2.66 Ohm	120 nH	150 MHz	5 %			110 mA	0402 (1005 Metric)	0.6 mm	0.024 in	20 150 MHz
