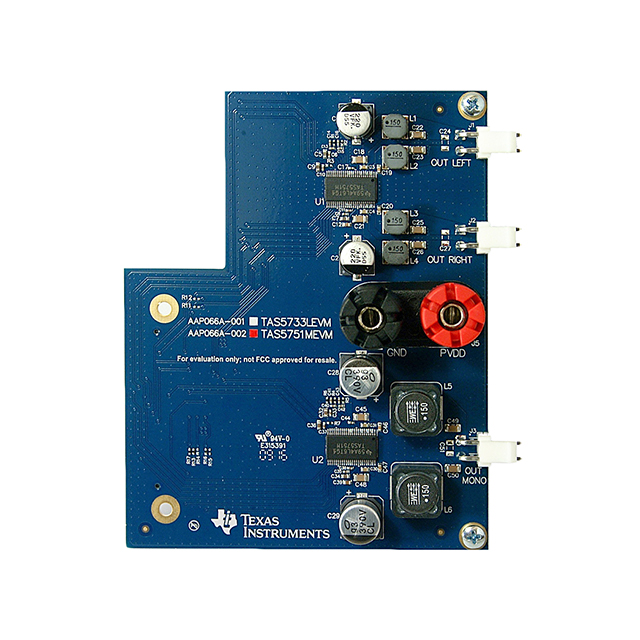

TAS5751M Series
25-W stereo, 40-W mono, 8- to 26.4-V, digital input open loop Class-D audio amplifier w/ EQ & AGL
Manufacturer: Texas Instruments
Catalog
25-W stereo, 40-W mono, 8- to 26.4-V, digital input open loop Class-D audio amplifier w/ EQ & AGL
Key Features
• Audio Input/OutputOne-Stereo Serial Audio InputSupports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I²S)Supports 3-Wire I²S Mode (no MCLK required)Automatic Audio Port Rate DetectionSupports BTL and PBTL ConfigurationPOUT= 25 W at 10% THD+NPVDD = 20 V, 8 Ω, 1 kHzAudio/PWM ProcessingIndependent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB StepsProgrammable Three-Band Automatic Gain Limiting (AGL)20 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesGeneral Features106-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)I²C Serial Control Interface w/ two AddressesThermal, Short-Circuit, and Undervoltage ProtectionUp to 90% EfficientAD, BD, and Ternary ModulationPWM Level MeterAudio Input/OutputOne-Stereo Serial Audio InputSupports 44.1-kHz and 48-kHz Sample Rates (LJ/RJ/I²S)Supports 3-Wire I²S Mode (no MCLK required)Automatic Audio Port Rate DetectionSupports BTL and PBTL ConfigurationPOUT= 25 W at 10% THD+NPVDD = 20 V, 8 Ω, 1 kHzAudio/PWM ProcessingIndependent Channel Volume Controls With Gain of 24 dB to Mute in 0.125-dB StepsProgrammable Three-Band Automatic Gain Limiting (AGL)20 Programmable Biquads for Speaker EQ and Other Audio-Processing FeaturesGeneral Features106-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)I²C Serial Control Interface w/ two AddressesThermal, Short-Circuit, and Undervoltage ProtectionUp to 90% EfficientAD, BD, and Ternary ModulationPWM Level Meter
Description
AI
The TAS5751M device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). In parallel bridge tied load (PBTL) in can produce higher power by driving the parallel outputs into a single lower impedance load. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5751M device is a slave-only device receiving all clocks from external sources. The TAS5751M device operates with a PWM carrier between a 384-kHz switching rate and a 288-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
The TAS5751M device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). In parallel bridge tied load (PBTL) in can produce higher power by driving the parallel outputs into a single lower impedance load. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5751M device is a slave-only device receiving all clocks from external sources. The TAS5751M device operates with a PWM carrier between a 384-kHz switching rate and a 288-kHz switching rate, depending on the input sample rate. Oversampling combined with a fourth-order noise shaper provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
