NWE82 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

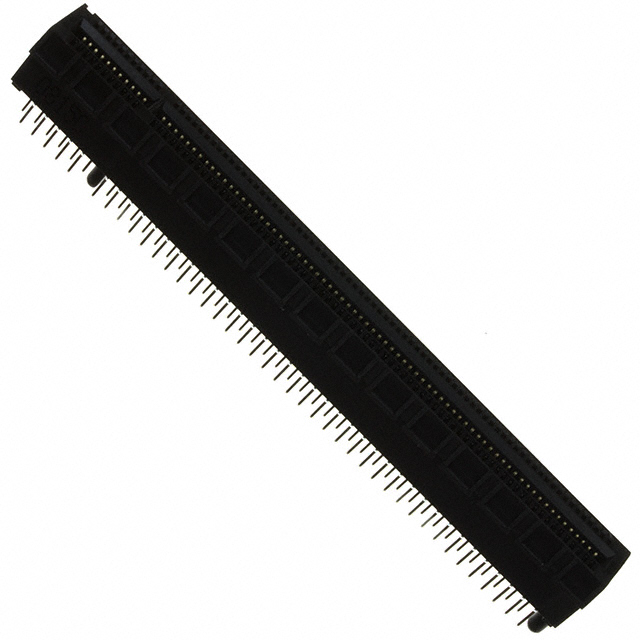

CONN PCI EXP FMALE 164POS 0.039
| Part | Material - Insulation | Termination | Contact Material | Card Type | Number of Positions | Gender | Number of Positions/Bay/Row | Card Thickness | Card Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Read Out | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Pitch | Pitch | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyamide (PA46) Nylon 4/6 | Solder Staggered | Phosphor Bronze | PCI Express™ | 164 | Female | 82 | 1.57 mm | 0.062 in | -55 C | 85 °C | Black | Gold | Dual | Flash | Through Hole | 2 | 1 mm | 0.039 in | Cantilever | Board Guide Locking Ramp |
