MP1921 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

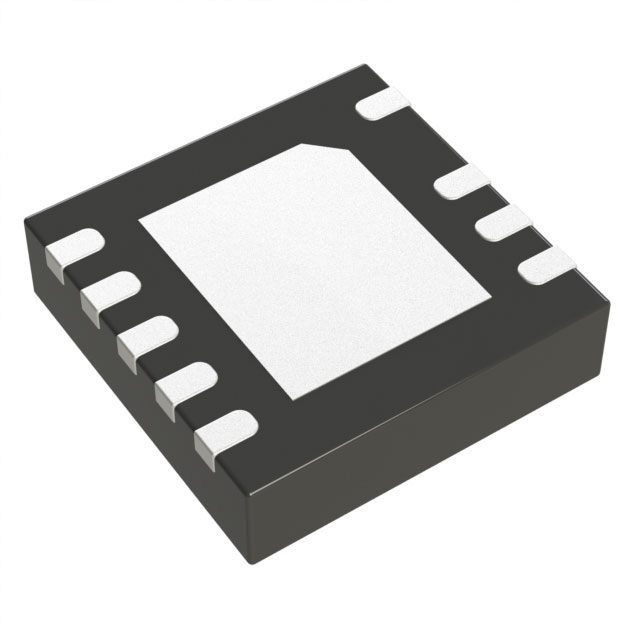

IC GATE DRVR HALF-BRIDGE 9QFN

Part	Gate Type	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Drivers	Supplier Device Package	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Logic Voltage - VIL, VIH	Input Type	Package / Case	Package / Case
Monolithic Power Systems Inc. MP1921HQE-A-LF-P	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	9-VFDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	9-QFN (3x3)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting
Monolithic Power Systems Inc. MP1921HR-A-LF-P	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	10-VDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	10-QFN (4x4)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting
Monolithic Power Systems Inc. MP1921HR-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	10-VDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	10-QFN (4x4)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting

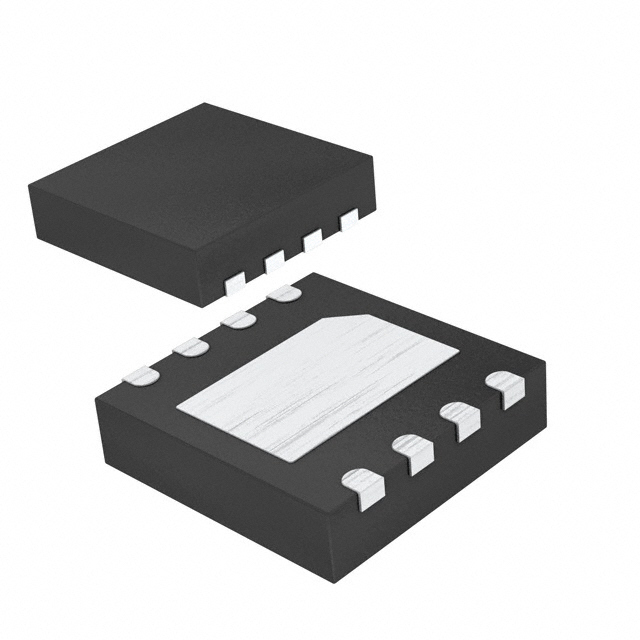

Monolithic Power Systems Inc. MP1921HQ-A-LF-P	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	8-VDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	8-QFN (3x3)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting
Monolithic Power Systems Inc. MP1921HS-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	8-SOIC	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	8-SOIC	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting	0.154 in	3.9 mm
Monolithic Power Systems Inc. MP1921HS-A-LF	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	8-SOIC	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	8-SOIC	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting	0.154 in	3.9 mm
Monolithic Power Systems Inc. MP1921HQE-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	9-VFDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	9-QFN (3x3)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting
Monolithic Power Systems Inc. MP1921HQ-A-LF-Z	MOSFET (N-Channel) N-Channel MOSFET	Half-Bridge	120 V	Independent	8-VDFN Exposed Pad	12 ns	9 ns	-40 C	125 °C	9 V	18 V	Surface Mount	2	8-QFN (3x3)	2.5 A	2.5 A	1 V 2.4 V	Non-Inverting
